6. (20 points) For the following High-Level Finite State Machine a) Construct the corresponding data path; b) Replace th
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
6. (20 points) For the following High-Level Finite State Machine a) Construct the corresponding data path; b) Replace th

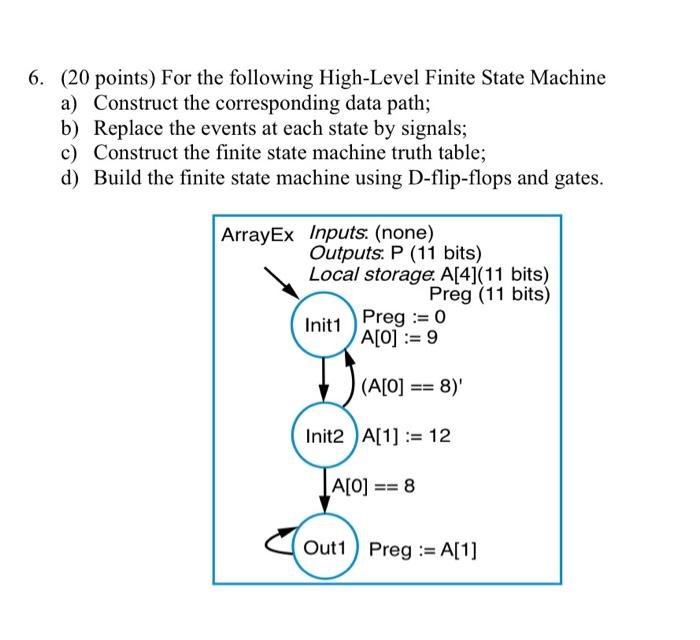

6. (20 points) For the following High-Level Finite State Machine a) Construct the corresponding data path; b) Replace the events at each state by signals; c) Construct the finite state machine truth table; d) Build the finite state machine using D-flip-flops and gates. ArrayEx Inputs: (none) Outputs: P (11 bits) Local storage. A[4](11 bits) Preg (11 bits) Init1 Preg := 0 A[O] := 9 (A[0] == 8)' Init2 A[1] := 12 A[0] == 8 Out1) Preg :=A[1]
