Question 3 (20 marks) Please consider the following shapes from (1) to (3) existed in separate images. Hough transforms

[answerhappygod]

Question 3 20 Marks Please Consider The Following Shapes From 1 To 3 Existed In Separate Images Hough Transforms 1 (70.32 KiB) Viewed 33 times

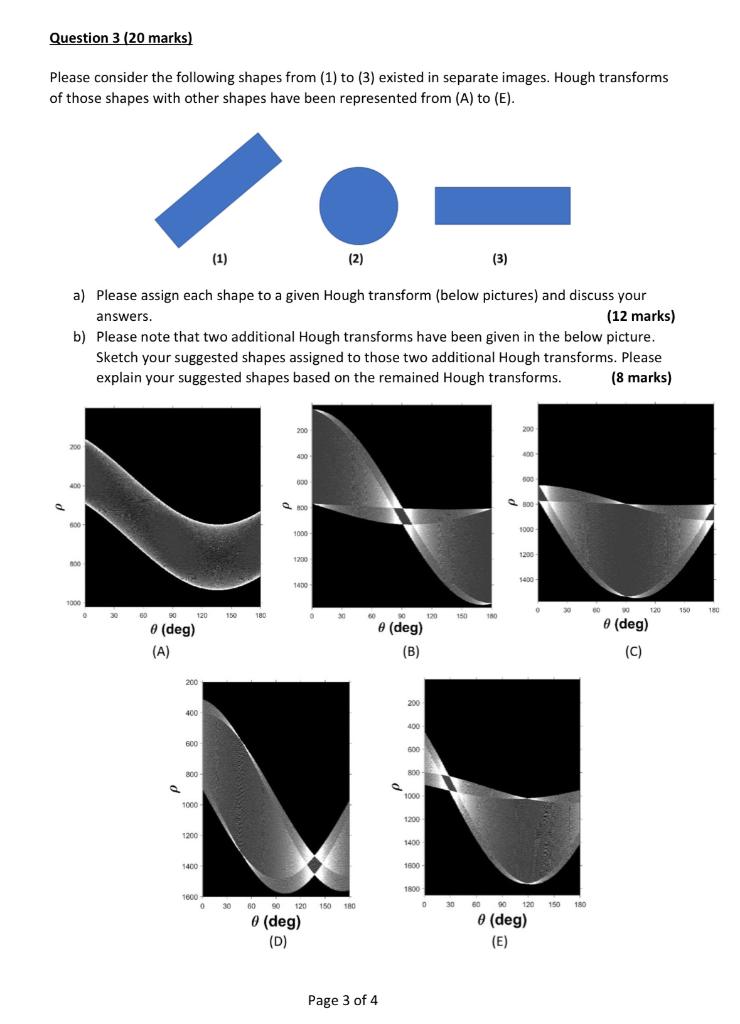

Question 3 (20 marks) Please consider the following shapes from (1) to (3) existed in separate images. Hough transforms of those shapes with other shapes have been represented from (A) to (E). (1) (2) () (3) a) Please assign each shape to a given Hough transform (below pictures) and discuss your answers. (12 marks) b) Please note that two additional Hough transforms have been given in the below picture. Sketch your suggested shapes assigned to those two additional Hough transforms. Please explain your suggested shapes based on the remained Hough transforms. (8 marks) 200 200 450 000 400 100 50 1000 1000 1200 1200 300 5400 1400 1000 90 120 150 180 30 60 120 150 180 20 120 150 10 @ (deg) (A) (deg) (B) (deg) (C) 200 200 400 400 600 500 200 800 1000 1000 1200 1200 1400 1400 1600 1800 1600 30 120 150 180 80 120 150 180 (deg) (D) 0 (deg) (E) Page 3 of 4
