Question 4 (4 marks) Design a sequential circuit with two D flip-flops and one input X. When X=1, the state of the circu

Post by answerhappygod »

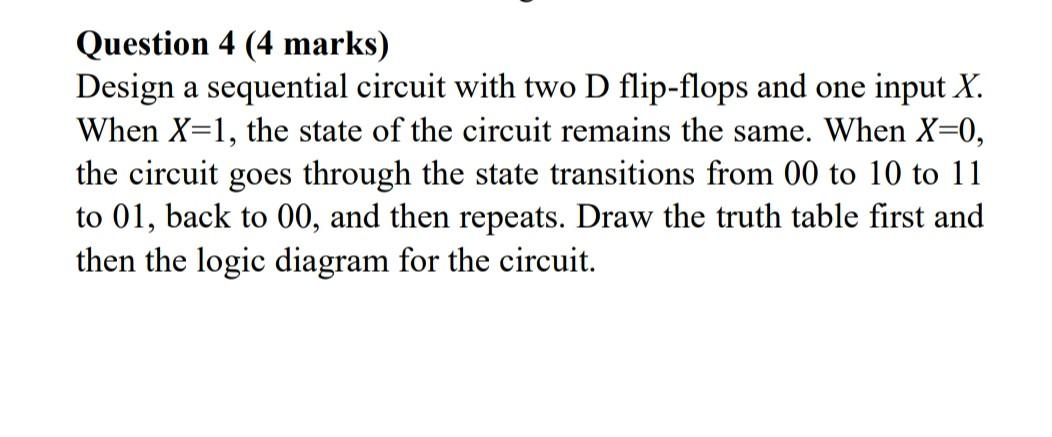

Question 4 4 Marks Design A Sequential Circuit With Two D Flip Flops And One Input X When X 1 The State Of The Circu 1
Question 4 4 Marks Design A Sequential Circuit With Two D Flip Flops And One Input X When X 1 The State Of The Circu 1 (49.75 KiB) Viewed 58 times
need answer Asap
Question 4 (4 marks) Design a sequential circuit with two D flip-flops and one input X. When X=1, the state of the circuit remains the same. When X=0, the circuit goes through the state transitions from 00 to 10 to 11 to 01, back to 00, and then repeats. Draw the truth table first and then the logic diagram for the circuit.
