11. A MOS capacitor has the following properties: tox=100nm; N;=1022 m3; Ex=3.9; Es=11.8; F=0.35V. Calculate: (1) The lo

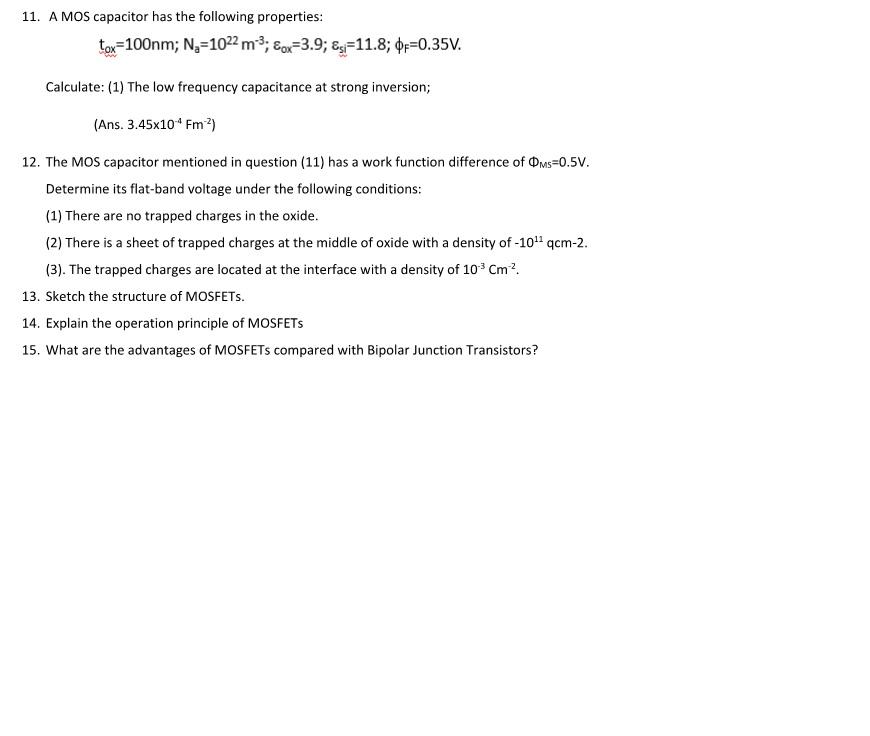

11. A MOS capacitor has the following properties: tox=100nm; N;=1022 m3; Ex=3.9; Es=11.8; F=0.35V. Calculate: (1) The low frequency capacitance at strong inversion; (Ans. 3.45x10* Fm 2) 12. The MOS capacitor mentioned in question (11) has a work function difference of Oms=0.5V. Determine its flat-band voltage under the following conditions: (1) There are no trapped charges in the oxide. (2) There is a sheet of trapped charges at the middle of oxide with a density of -104 cm-2. (3). The trapped charges are located at the interface with a density of 10 cm? 13. Sketch the structure of MOSFETS. 14. Explain the operation principle of MOSFETS 15. What are the advantages of MOSFETs compared with Bipolar Junction Transistors?
