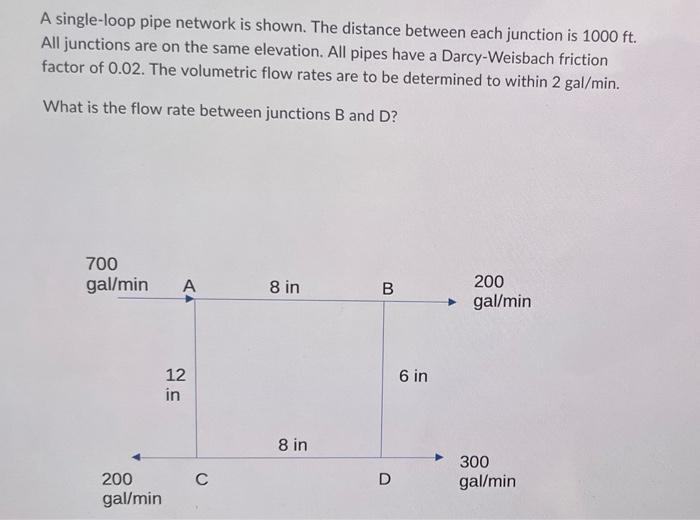

A single-loop pipe network is shown. The distance between each junction is 1000 ft. All junctions are on the same elevation. All pipes have a Darcy-Weisbach friction factor of 0.02. The volumetric flow rates are to be determined to within 2 gal/min. What is the flow rate between junctions B and D? 700 gal/min A 8 in B B 200 gal/min 12 in 6 in 8 in C D 200 gal/min 300 gal/min
36 gal/min from B to D 58 gal/min from B to D 84 gal/min from D to B 112 gal/min from D to B D B
