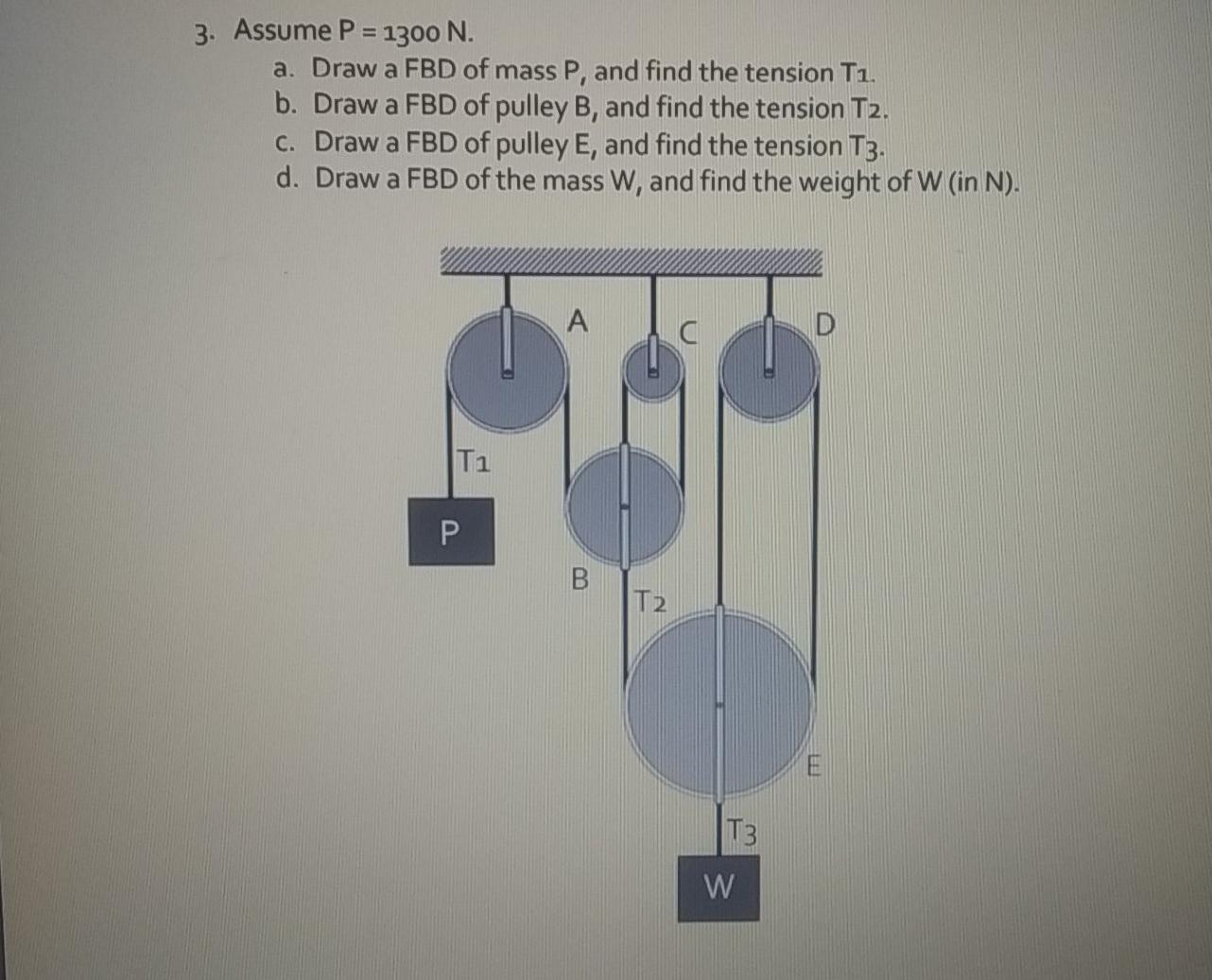

3. Assume P = 1300 N. a. Draw a FBD of mass P, and find the tension T1. b. Draw a FBD of pulley B, and find the tension T2. C. Draw a FBD of pulley E, and find the tension T3. d. Draw a FBD of the mass W, and find the weight of W (in N). A D Ti Р B. T2 E T3 W
