9-10 Deflection at point 3.5ft from left support of beam reference problem 9-9
9 10 Deflection At Point 3 5ft From Left Support Of Beam Reference Problem 9 9 1 (95.87 KiB) Viewed 30 times
9 10 Deflection At Point 3 5ft From Left Support Of Beam Reference Problem 9 9 2 (29.67 KiB) Viewed 30 times

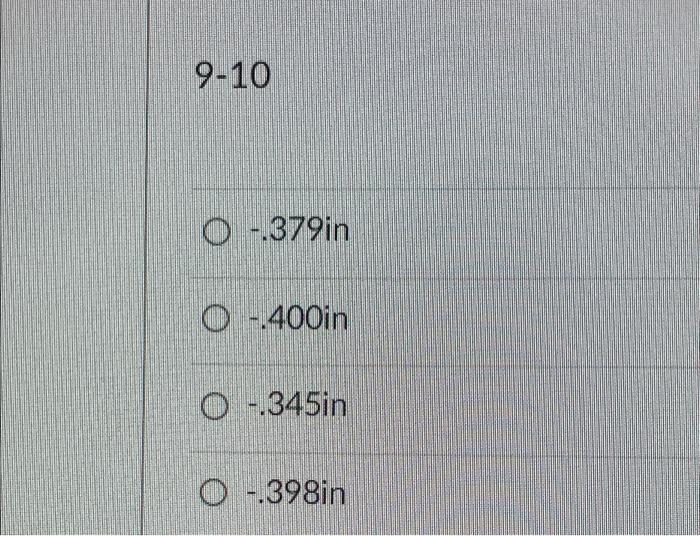

9-10 0 -.379in O -.400in O -.345in 0 -.398in

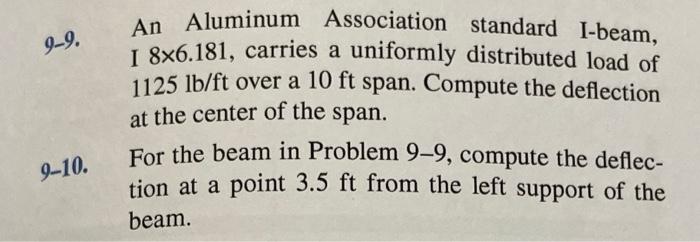

9-9. An Aluminum Association standard I-beam, I 8x6.181, carries a uniformly distributed load of 1125 lb/ft over a 10 ft span. Compute the deflection at the center of the span. For the beam in Problem 9-9, compute the deflec- tion at a point 3.5 ft from the left support of the beam. 9-10.
