3. 4 kN 6 kN 8 kN The shaft consists of a pipe AB and the solid rod BC. The pipe has an inner diameter of 20 mm and oute

[answerhappygod]

3 4 Kn 6 Kn 8 Kn The Shaft Consists Of A Pipe Ab And The Solid Rod Bc The Pipe Has An Inner Diameter Of 20 Mm And Oute 1 (14.26 KiB) Viewed 118 times

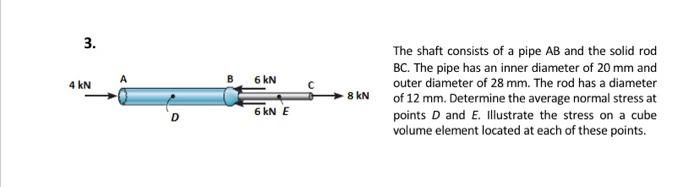

3. 4 kN 6 kN 8 kN The shaft consists of a pipe AB and the solid rod BC. The pipe has an inner diameter of 20 mm and outer diameter of 28 mm. The rod has a diameter of 12 mm. Determine the average normal stress at points D and E. illustrate the stress on a cube volume element located at each of these points. 6 kN E
