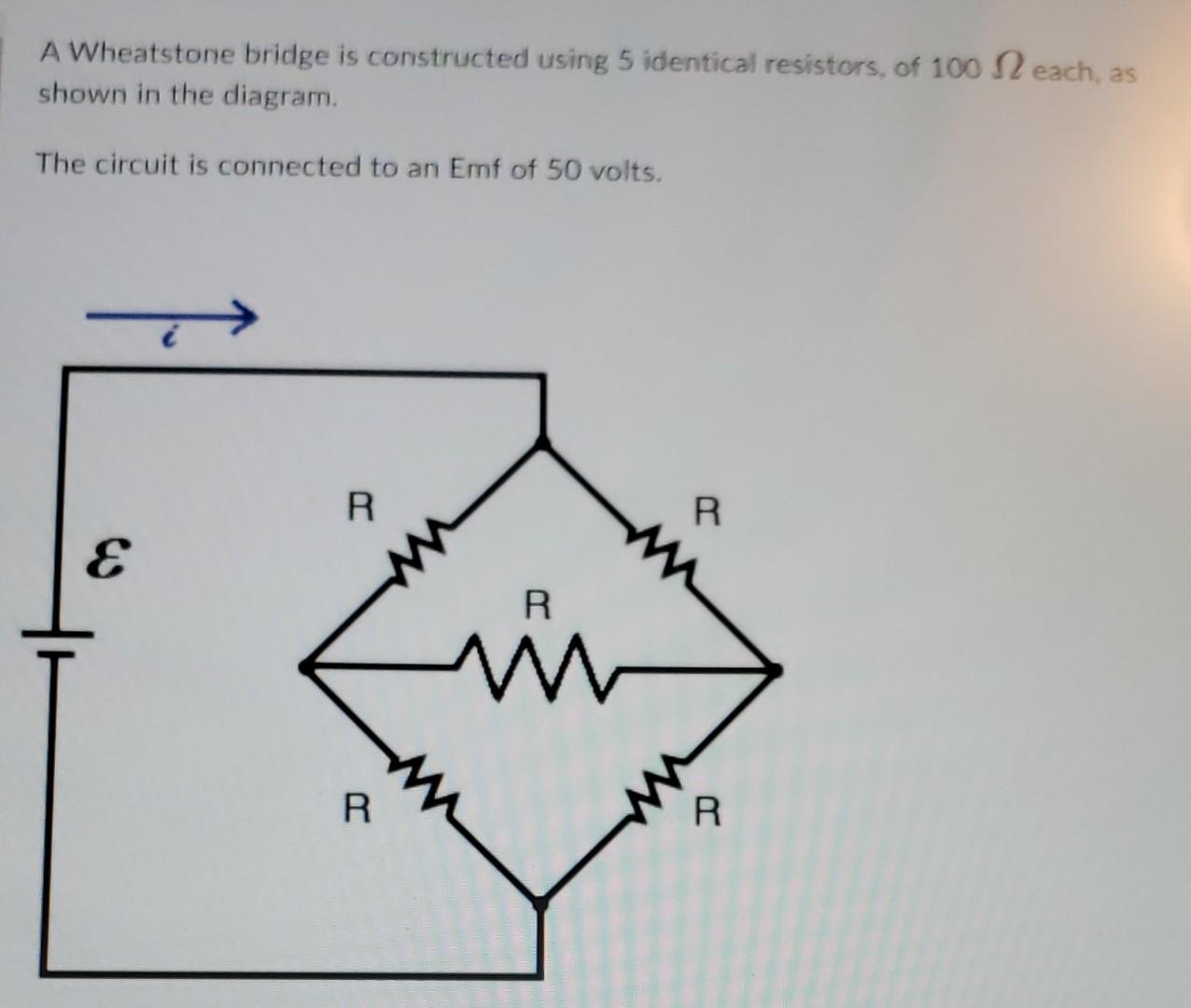

A Wheatstone bridge is constructed using 5 identical resistors, of 100 N each, as shown in the diagram. The circuit is connected to an Emf of 50 volts. R R E R R R

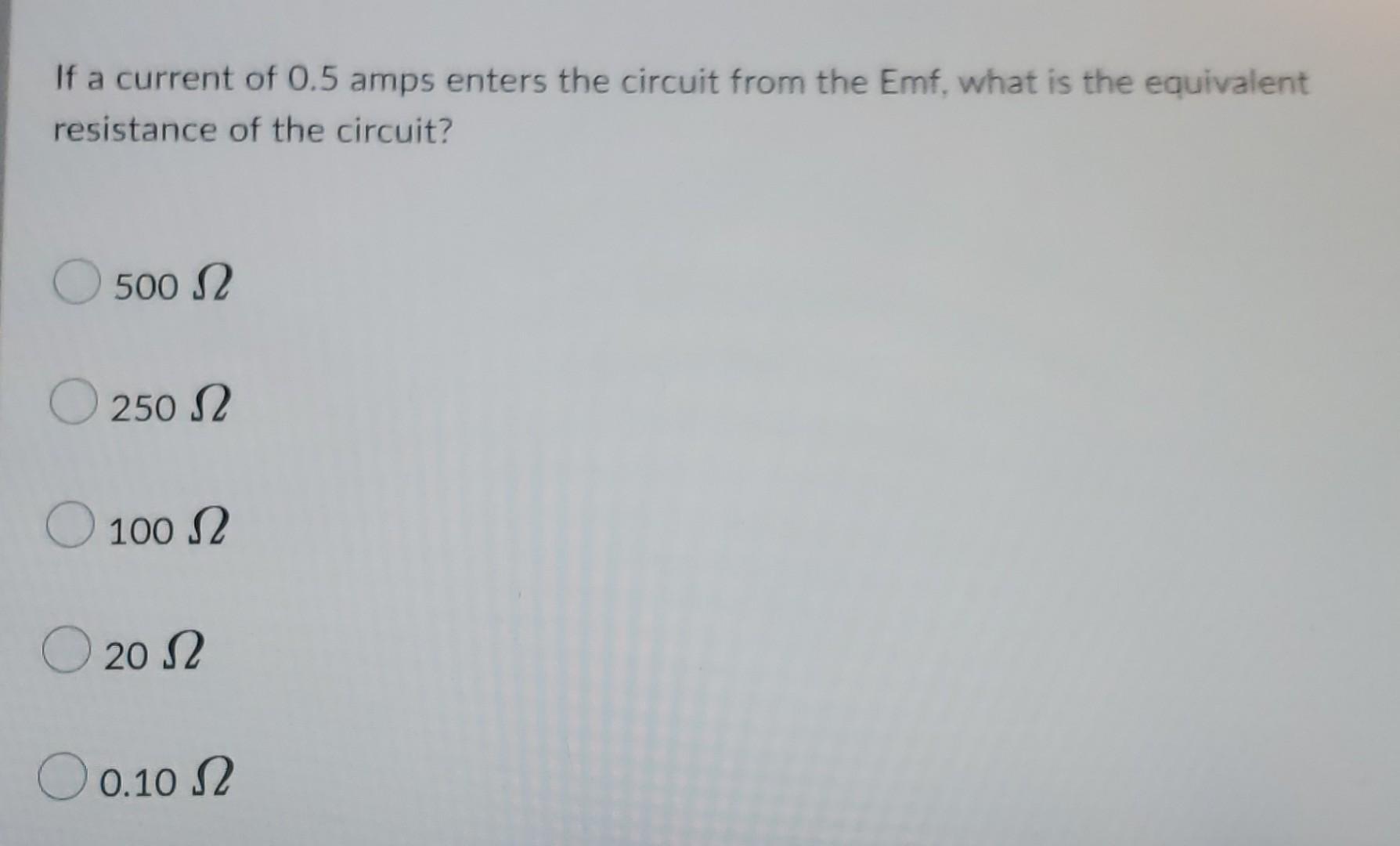

If a current of 0.5 amps enters the circuit from the Emf, what is the equivalent resistance of the circuit? O 500 12 Ο 250 Ω O 100 12 O 2012 O 0.10 12
