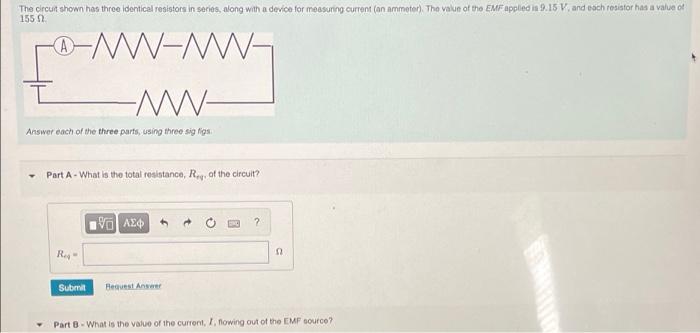

The circuit shown has three Identical resistors in serios, along with a device for measuring current (an ammeter). The value of the EMF applied in 9.15 V, and vach resistor has a value of 1552 O-MW-MW -MW- Answer each of the three parts, using three sig Pigs Port A. What is the total resistance, Ry of the circulit? Vo] ΑΣΦ και 30 ? R- Submit Hequest Answer Part 8. What is the value of the current, flowing out of the EMF source?

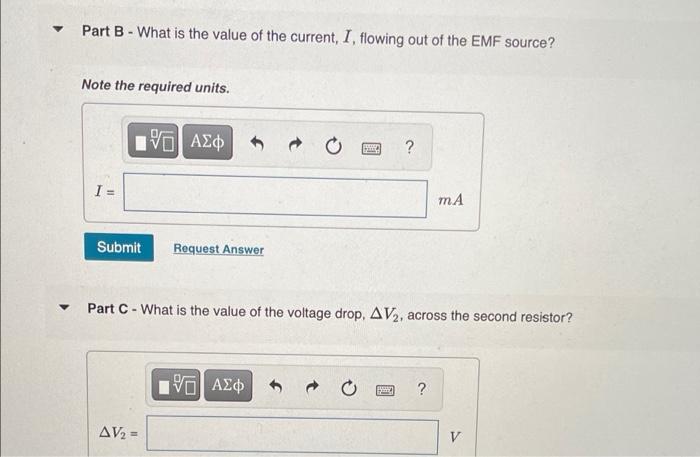

Part B - What is the value of the current, I flowing out of the EMF source? Note the required units. V ΟΙ ΑΣφ ? I = mA Submit Request Answer Part C - What is the value of the voltage drop, AV2, across the second resistor? Ιθ| ΑΣφ ? AV2 = V
