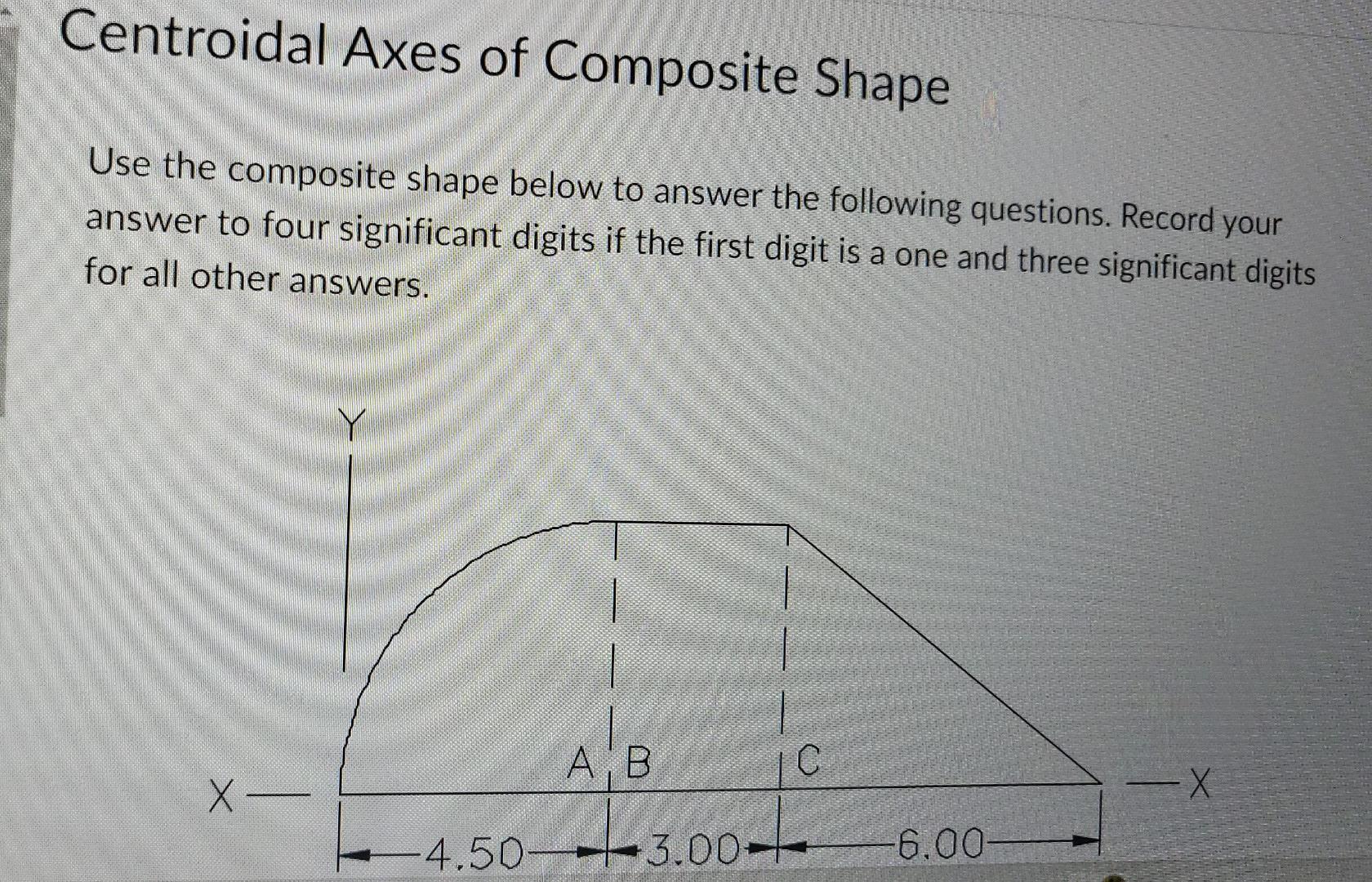

Centroidal Axes of Composite Shape Use the composite shape below to answer the following questions. Record your answer to four significant digits if the first digit is a one and three significant digits for all other answers. AB C X- - X 4.50-3.00- 6.00

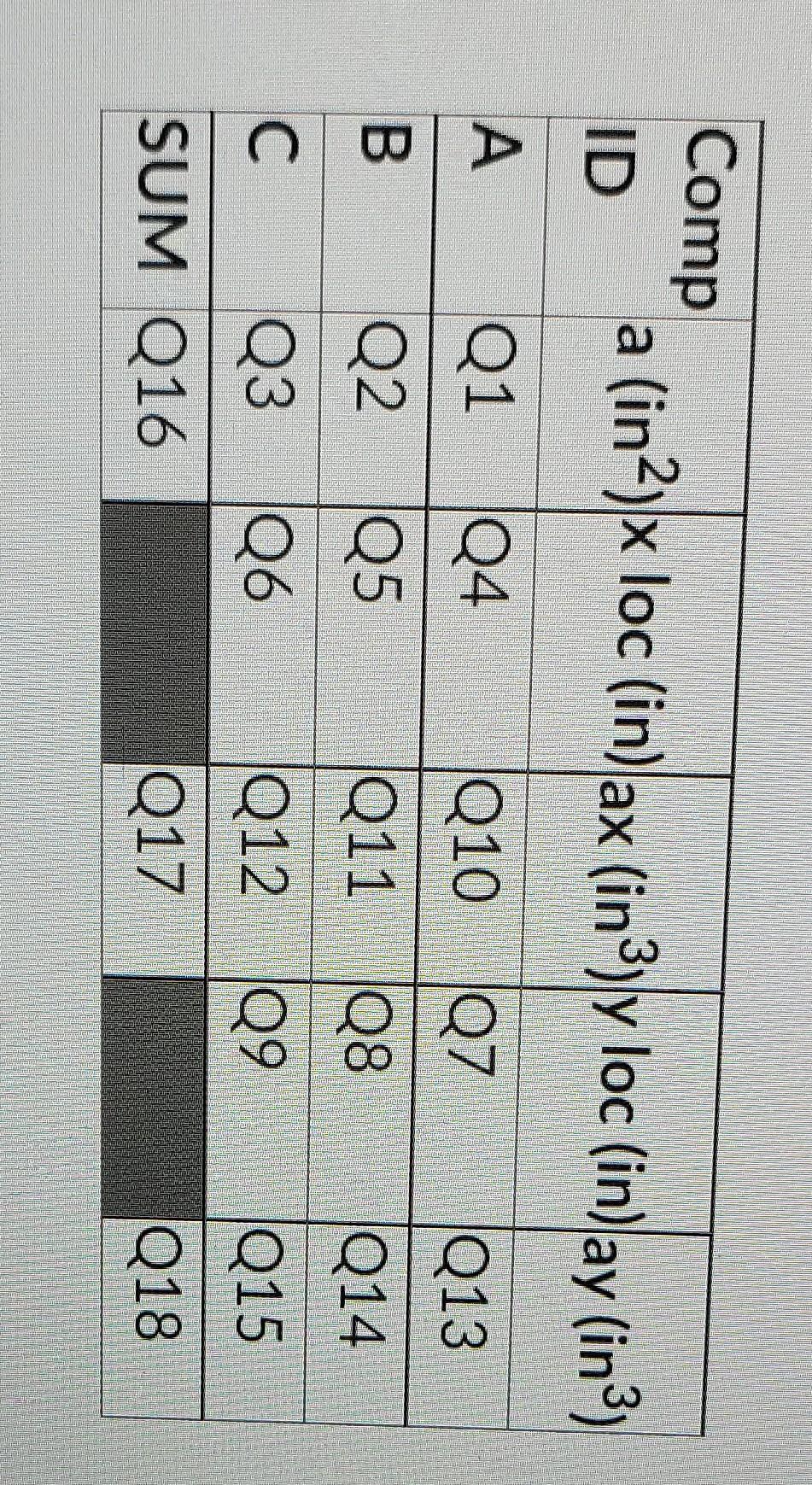

Comp a (in2))x loc (in) ax (in) y loc (in) ay (in3) ID A 04 Q13 Q1 Q2 Q10 Q7 Q11 Q8 B Q5 C Q3 Q6 012 09 014 Q15 Q18 SUM Q16 Q17

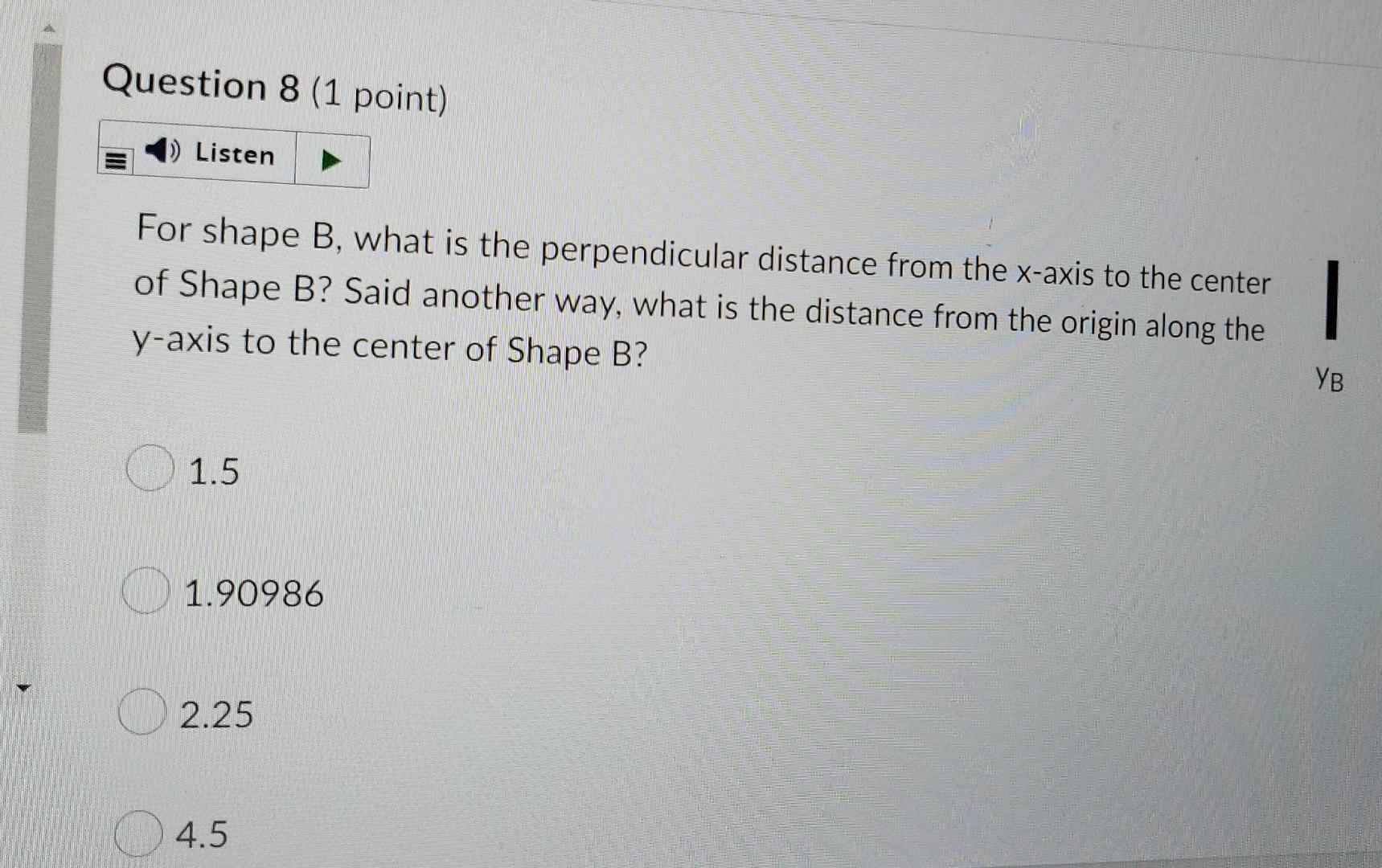

Question 8 (1 point) 1) Listen For shape B, what is the perpendicular distance from the x-axis to the center of Shape B? Said another way, what is the distance from the origin along the y-axis to the center of Shape B? | YB 1.5 1.90986 2.25 4.5
