Design a Geogrid Retaining Wall Provide cross-sectional details at a min of 6 stations and an elevation. Draw everything

Post by answerhappygod »

Design A Geogrid Retaining Wall Provide Cross Sectional Details At A Min Of 6 Stations And An Elevation Draw Everything 1
Design A Geogrid Retaining Wall Provide Cross Sectional Details At A Min Of 6 Stations And An Elevation Draw Everything 1 (162.73 KiB) Viewed 19 times

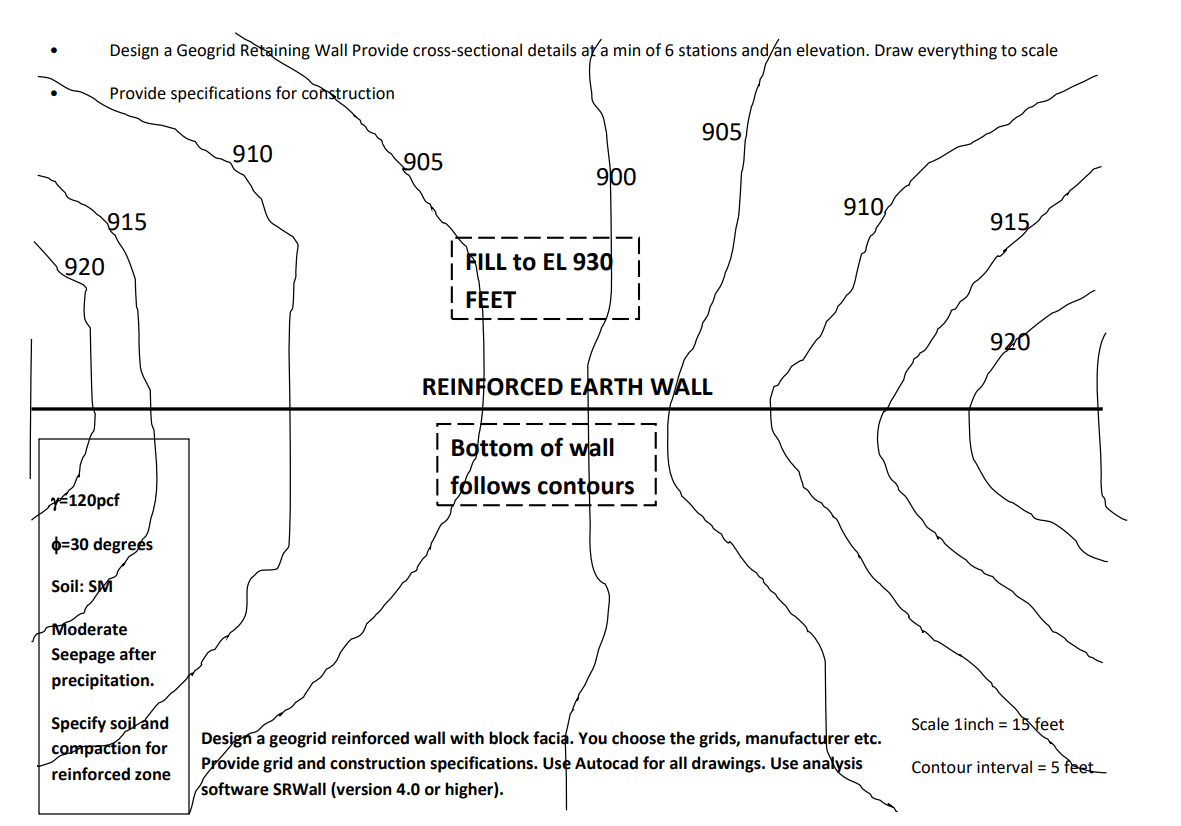

Design a Geogrid Retaining Wall Provide cross-sectional details at a min of 6 stations and an elevation. Draw everything to scale Provide specifications for construction 905 910 905 900 910 915 915 920 FILL to EL 930 | FEET 920 REINFORCED EARTH WALL Bottom of wall 1 i follows contours 7+120pcf 0=30 degrees Soil: SM Moderate Seepage after precipitation. Scale 1inch = 15 feet Specify soil and compaction for reinforced zone Design a geogrid reinforced wall with block facia. You choose the grids, manufacturer etc. Provide grid and construction specifications. Use Autocad for all drawings. Use analysis software SRWall (version 4.0 or higher). Contour interval = 5 feet_
