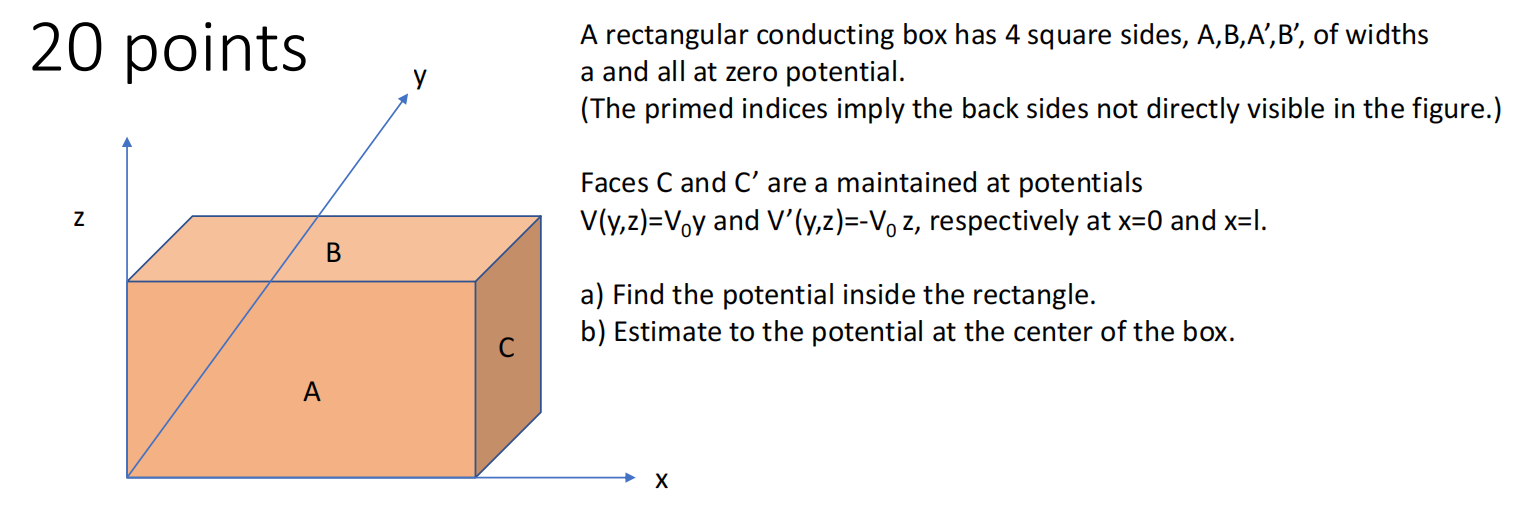

A rectangular conducting box has 4 square sides, A,B,A’,B’, of
widths
a and all at zero potential.
(The primed indices imply the back sides not directly visible in
the figure.)
Faces C and C’ are a maintained at potentials
V(y,z)=V0 y and V’(y,z)=-V0 z, respectively at x=0 and x=l.
a) Find the potential inside the rectangle.
b) Estimate to the potential at the center of the box.
- A Rectangular Conducting Box Has 4 Square Sides A B A B Of Widths A And All At Zero Potential The Primed Indices I 1 (78.7 KiB) Viewed 15 times
20 points у A rectangular conducting box has 4 square sides, A,B,A',B', of widths a and all at zero potential. (The primed indices imply the back sides not directly visible in the figure.) . Faces C and C'are a maintained at potentials V(y,z)=Voy and V'(y,z)=-Vo z, respectively at x=0 and x=l. z B a) Find the potential inside the rectangle. b) Estimate to the potential at the center of the box. С A х
