Suppose a p-n junction at zero bias with Na = 102 cm and Nd=106 cm at room emperature. a) Calculate the total band bendi

Post by answerhappygod »

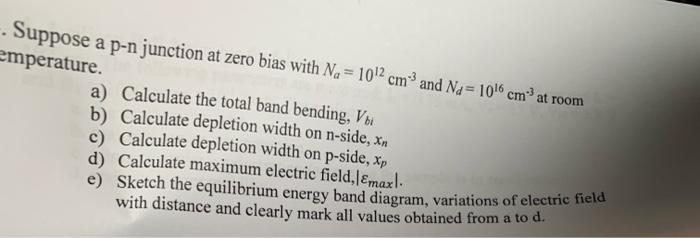

Suppose A P N Junction At Zero Bias With Na 102 Cm And Nd 106 Cm At Room Emperature A Calculate The Total Band Bendi 1
Suppose A P N Junction At Zero Bias With Na 102 Cm And Nd 106 Cm At Room Emperature A Calculate The Total Band Bendi 1 (22.47 KiB) Viewed 19 times
Suppose a p-n junction at zero bias with Na = 102 cm and Nd=106 cm at room emperature. a) Calculate the total band bending, Vbi b) Calculate depletion width on n-side, xn c) Calculate depletion width on p-side, Xp d) Calculate maximum electric field, Emaxl. e) Sketch the equilibrium energy band diagram, variations of electric field with distance and clearly mark all values obtained from a to d.
