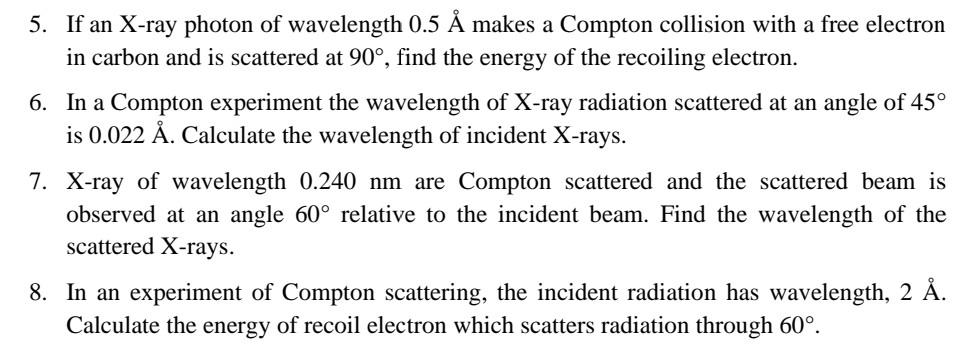

5. If an X-ray photon of wavelength 0.5 Å makes a Compton collision with a free electron in carbon and is scattered at 90°, find the energy of the recoiling electron. 6. In a Compton experiment the wavelength of X-ray radiation scattered at an angle of 45° is 0.022 Å. Calculate the wavelength of incident X-rays. 7. X-ray of wavelength 0.240 nm are Compton scattered and the scattered beam is observed at an angle 60° relative to the incident beam. Find the wavelength of the scattered X-rays. 8. In an experiment of Compton scattering, the incident radiation has wavelength, 2 Å. Calculate the energy of recoil electron which scatters radiation through 60°.
