Determine the force in each member of the Gambrel roof truss shown using Method of Section. State whether each member is

Post by answerhappygod »

Determine The Force In Each Member Of The Gambrel Roof Truss Shown Using Method Of Section State Whether Each Member Is 1
Determine The Force In Each Member Of The Gambrel Roof Truss Shown Using Method Of Section State Whether Each Member Is 1 (41.04 KiB) Viewed 22 times

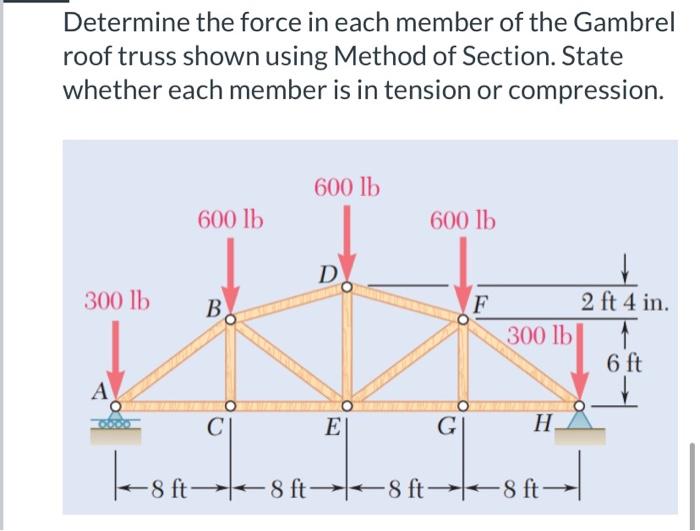

Determine the force in each member of the Gambrel roof truss shown using Method of Section. State whether each member is in tension or compression. 600 lb 600 lb 600 lb D 300 lb В. F 2 ft 4 in. . 300 lb 6 ft A С E G Н. hon -8 ft 8f8f-78 ft
