Given the information appearing in Fig. 120, determine: a. Ic. b. Vcc c. B. d. RB. Vcc 2.2 k92 RB + Vce = 7.2 18 = 20 UA

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Given the information appearing in Fig. 120, determine: a. Ic. b. Vcc c. B. d. RB. Vcc 2.2 k92 RB + Vce = 7.2 18 = 20 UA

Post by answerhappygod »

Given The Information Appearing In Fig 120 Determine A Ic B Vcc C B D Rb Vcc 2 2 K92 Rb Vce 7 2 18 20 Ua 1
Given The Information Appearing In Fig 120 Determine A Ic B Vcc C B D Rb Vcc 2 2 K92 Rb Vce 7 2 18 20 Ua 1 (31.59 KiB) Viewed 17 times

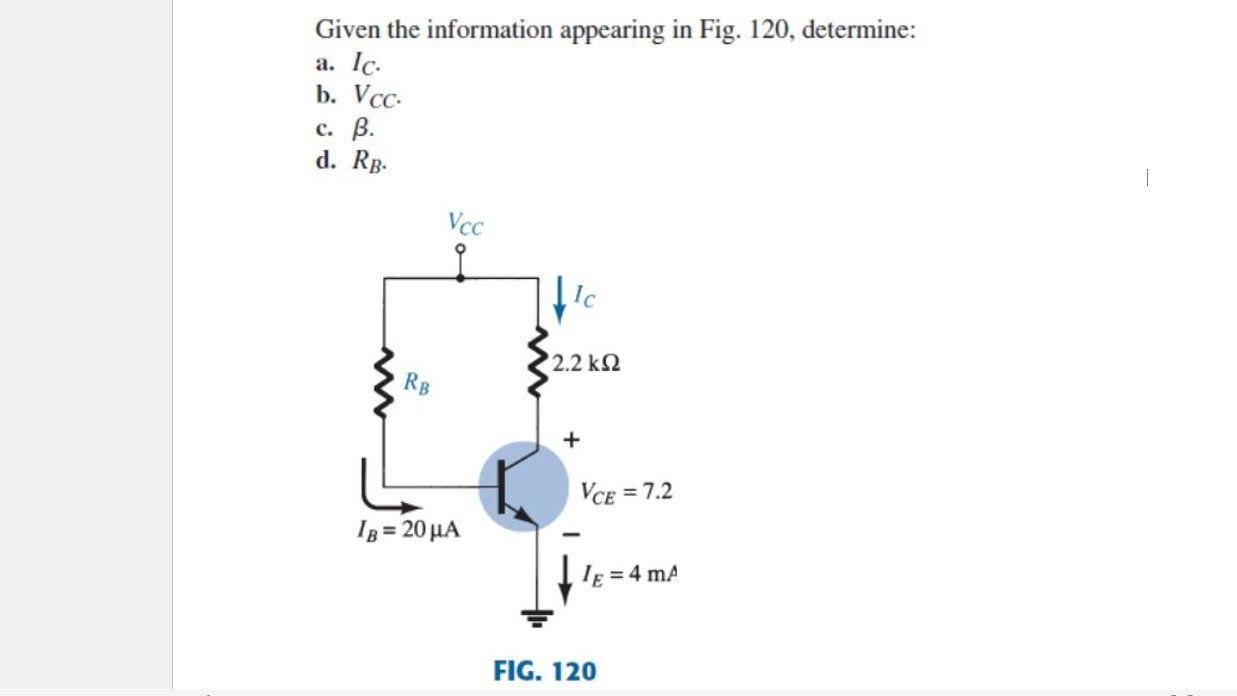

Given the information appearing in Fig. 120, determine: a. Ic. b. Vcc c. B. d. RB. Vcc 2.2 k92 RB + Vce = 7.2 18 = 20 UA le = 4 m FIG. 120
