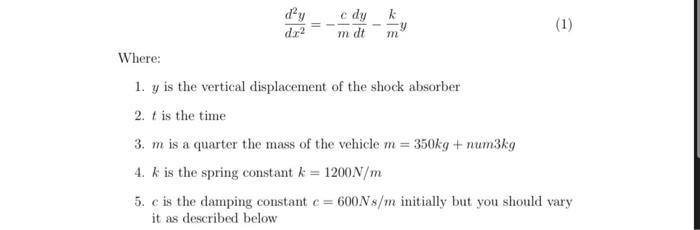

e dy K d. 2 m dt (1) m Where: 1. y is the vertical displacement of the shock absorber 2. t is the time 3. m is a quarter the mass of the vehicle m= 350kg + num3kg 4. k is the spring constant k = 1200N/m 5. c is the damping constant c = 600N s/m initially but you should vary it as described below
Take y(0) = 0.15m and in initial velocity of shock absorber, 0, at t = 0 as in the reference. Find a suitable time step for your Runge- Kutta implementation by comparing the answer to the solution given in the reference.
