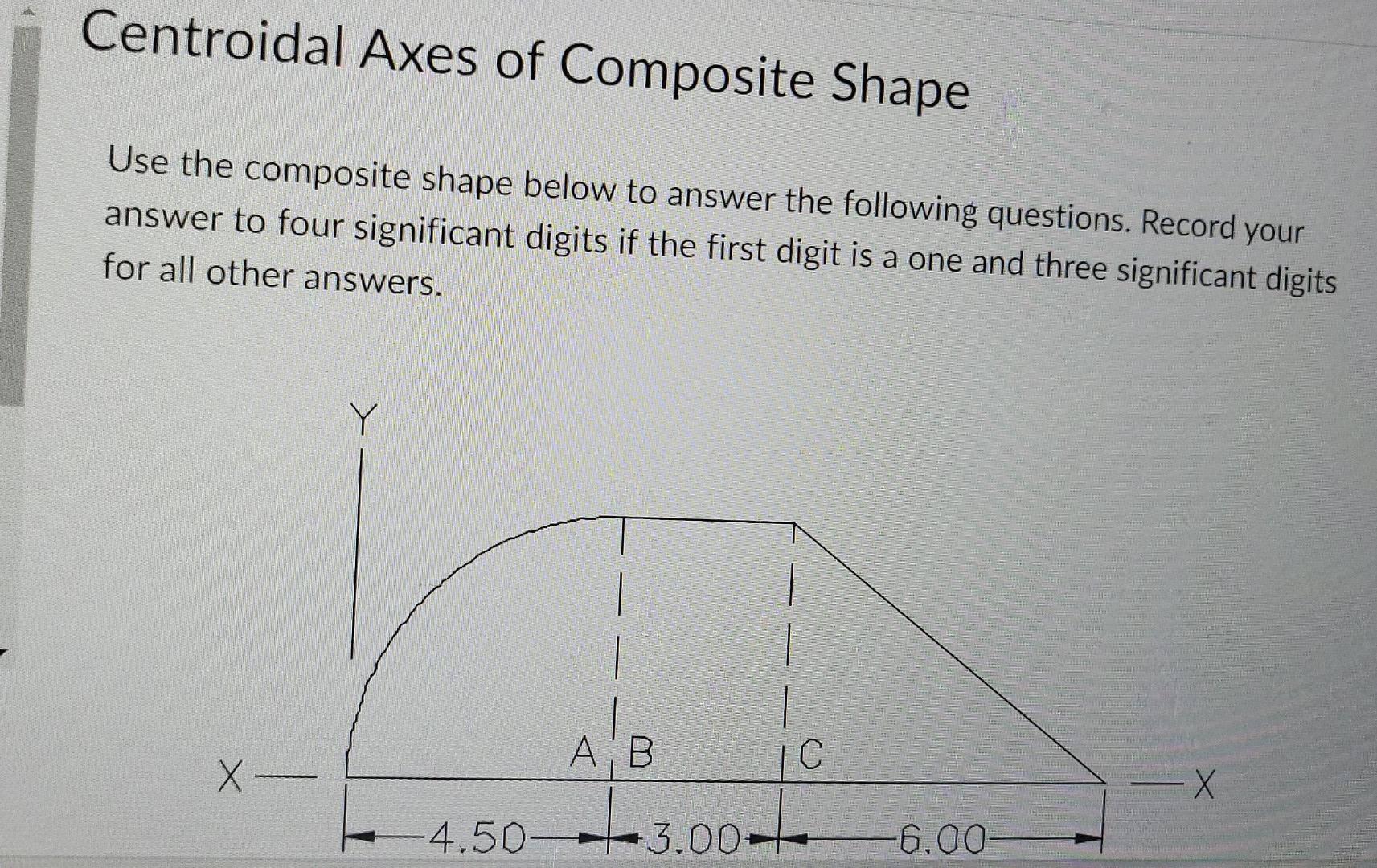

Centroidal Axes of Composite Shape Use the composite shape below to answer the following questions. Record your answer to four significant digits if the first digit is a one and three significant digits for all other answers. Y 1 A B X IC -X X -4.504 +3.00 6.00

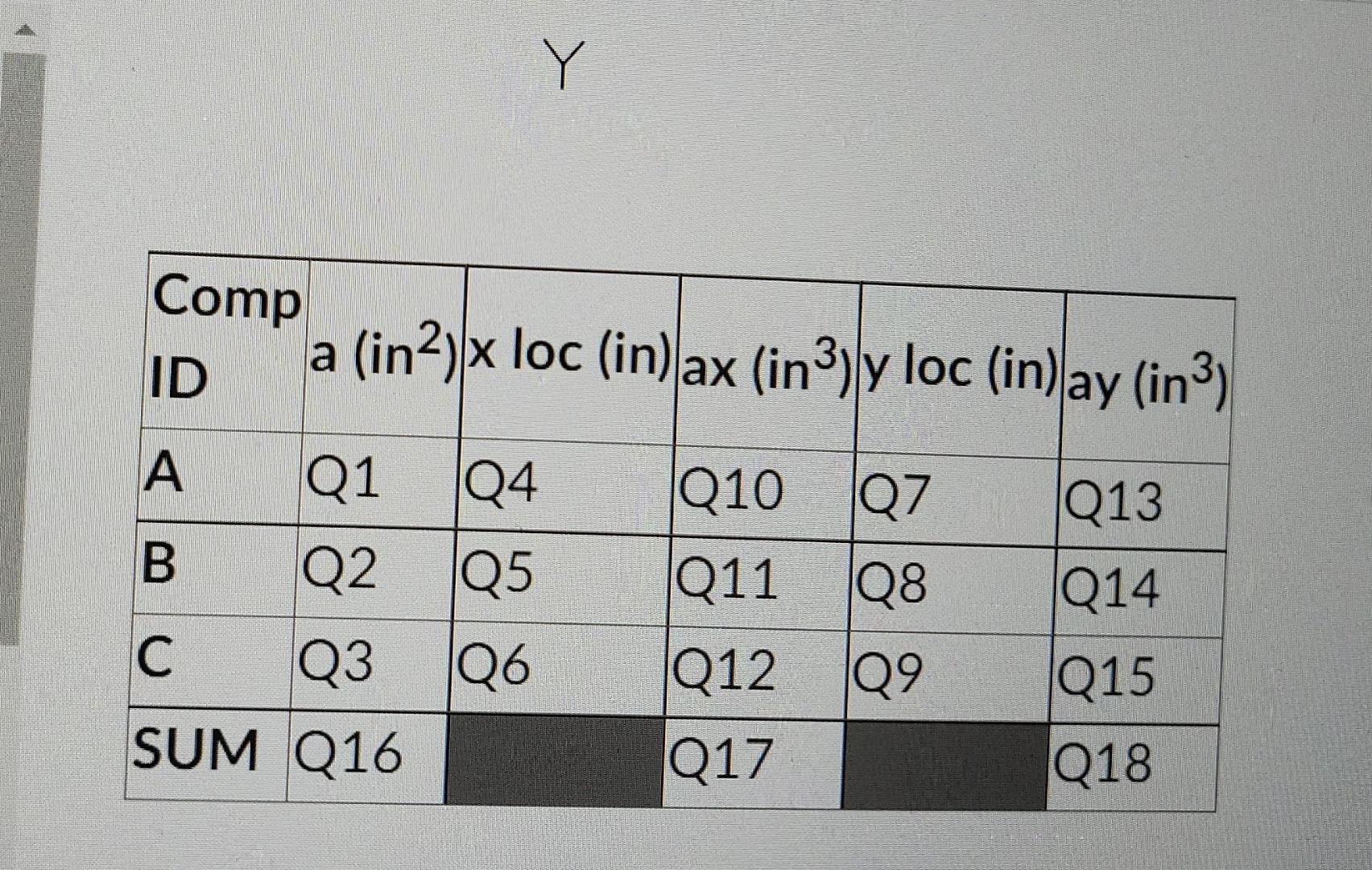

Y Comp a (in2) x loc (in) ax (in3) y loc (in) ay (in 3) ID A Q4 B Q1 Q2 Q3 Q13 Q14 Q5 Q10 Q7 Q11 Q8 Q12Q9 Q17 C |Q6 SUM Q16 Q15 Q18
Question 7 (1 point) Listen III For shape A, what is the perpendicular distance from the x-axis to the center of Shape A? Said another way, what is the distance from the origin along the y-axis to the center of Shape A? YA 1.5 1.90986 2.25 4.5
