Problem # 6 3.46 and 3.47 The solid cylindrical rod BC of length 2 = 24 in. is attached to the rigid lever AB of length

Post by answerhappygod »

Problem 6 3 46 And 3 47 The Solid Cylindrical Rod Bc Of Length 2 24 In Is Attached To The Rigid Lever Ab Of Length 1
Problem 6 3 46 And 3 47 The Solid Cylindrical Rod Bc Of Length 2 24 In Is Attached To The Rigid Lever Ab Of Length 1 (331.09 KiB) Viewed 19 times

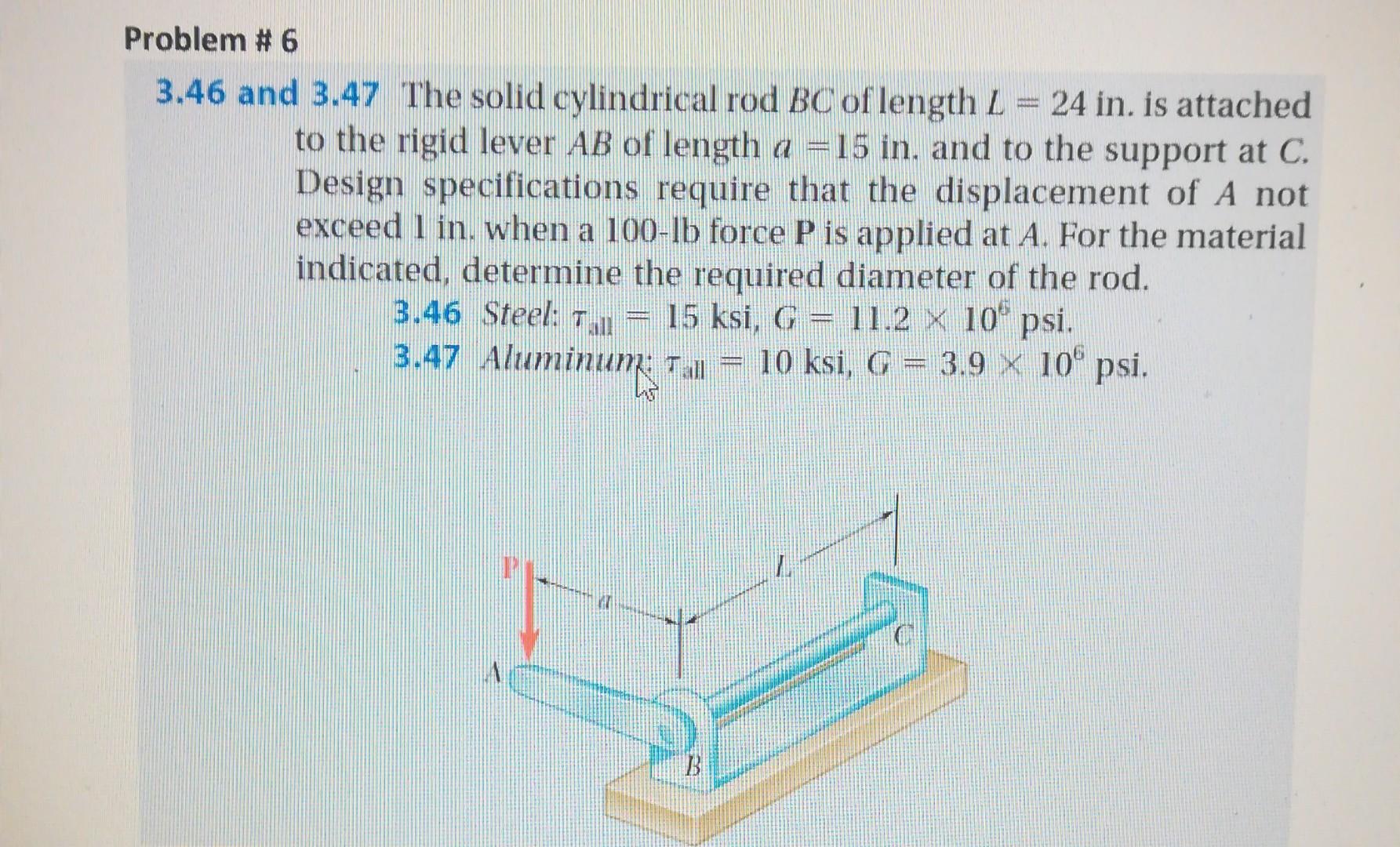

Problem # 6 3.46 and 3.47 The solid cylindrical rod BC of length 2 = 24 in. is attached to the rigid lever AB of length a = 15 in. and to the support at C. Design specifications require that the displacement of A not exceed I in, when a 100-lb force P is applied at A. For the material indicated, determine the required diameter of the rod. 3.46 Steel: Thu 15 ksi, G 11.2 x 10° psi. = 3.47 Aluminum 1 = 10 ksi, C = 3.9 X 10 psi. 4131 B
