Part A The 20-mm-diameter copper coil is used for a solar hot water heater. Water at an average temperature of T = 50°C

[answerhappygod]

Part A The 20 Mm Diameter Copper Coil Is Used For A Solar Hot Water Heater Water At An Average Temperature Of T 50 C 1 (103.31 KiB) Viewed 23 times

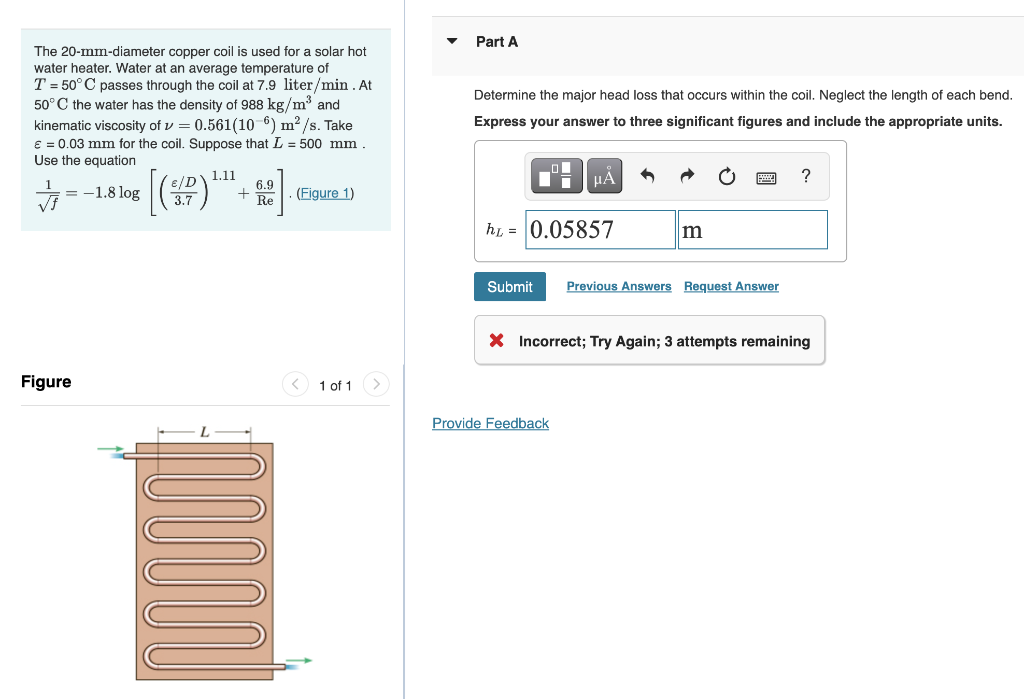

Part A The 20-mm-diameter copper coil is used for a solar hot water heater. Water at an average temperature of T = 50°C passes through the coil at 7.9 liter/min . At 50°C the water has the density of 988 kg/m3 and kinematic viscosity of v=0.561(106) m/s. Take € = 0.03 mm for the coil. Suppose that L = 500 mm Use the equation 1.11 E/D · = -1.8 log 6.9 3.7 + Re (Figure 1) Determine the major head loss that occurs within the coil. Neglect the length of each bend. Express your answer to three significant figures and include the appropriate units. UA ? To h = 0.05857 m Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining Figure 1 of 1 Provide Feedback
