A converging-diverging nozzle operates at steady state. Air as an ideal gas with k = 1.4 flows through the nozzle, disch

Post by answerhappygod »

A Converging Diverging Nozzle Operates At Steady State Air As An Ideal Gas With K 1 4 Flows Through The Nozzle Disch 1
A Converging Diverging Nozzle Operates At Steady State Air As An Ideal Gas With K 1 4 Flows Through The Nozzle Disch 1 (46.69 KiB) Viewed 18 times

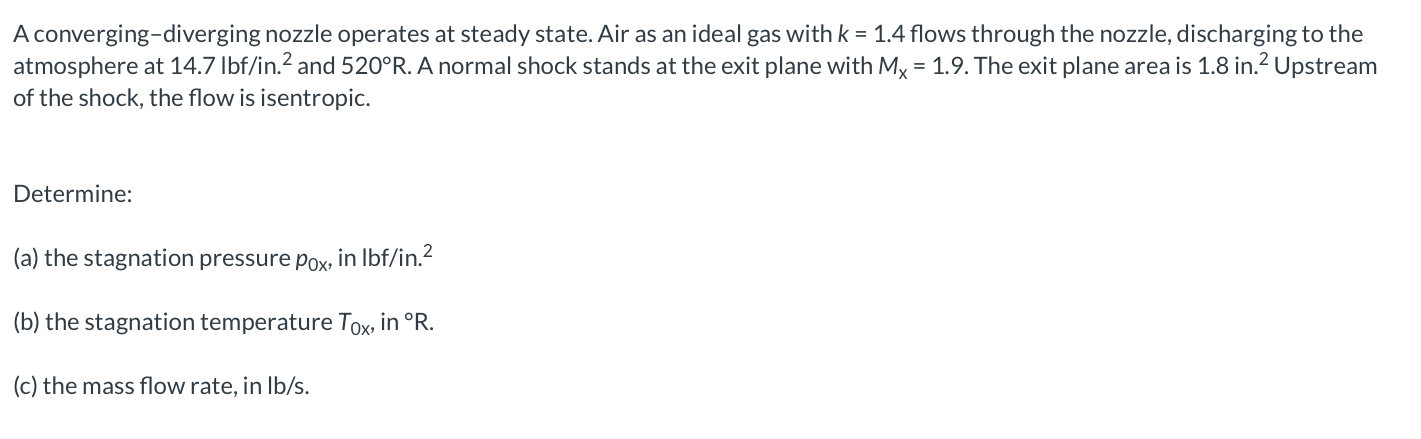

A converging-diverging nozzle operates at steady state. Air as an ideal gas with k = 1.4 flows through the nozzle, discharging to the atmosphere at 14.7 lbf/in.2 and 520°R. A normal shock stands at the exit plane with Mx = 1.9. The exit plane area is 1.8 in.2 Upstream of the shock, the flow is isentropic. = Determine: (a) the stagnation pressure pox, in lbf/in.2 (b) the stagnation temperature Tox, in °R. (c) the mass flow rate, in lb/s.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
