C 2 kN/m P.4. (30 points) The frame is pin-connected at 4. B, and C. Determine the horizontal and vertical components of

Post by answerhappygod »

C 2 Kn M P 4 30 Points The Frame Is Pin Connected At 4 B And C Determine The Horizontal And Vertical Components Of 1
C 2 Kn M P 4 30 Points The Frame Is Pin Connected At 4 B And C Determine The Horizontal And Vertical Components Of 1 (53.41 KiB) Viewed 22 times

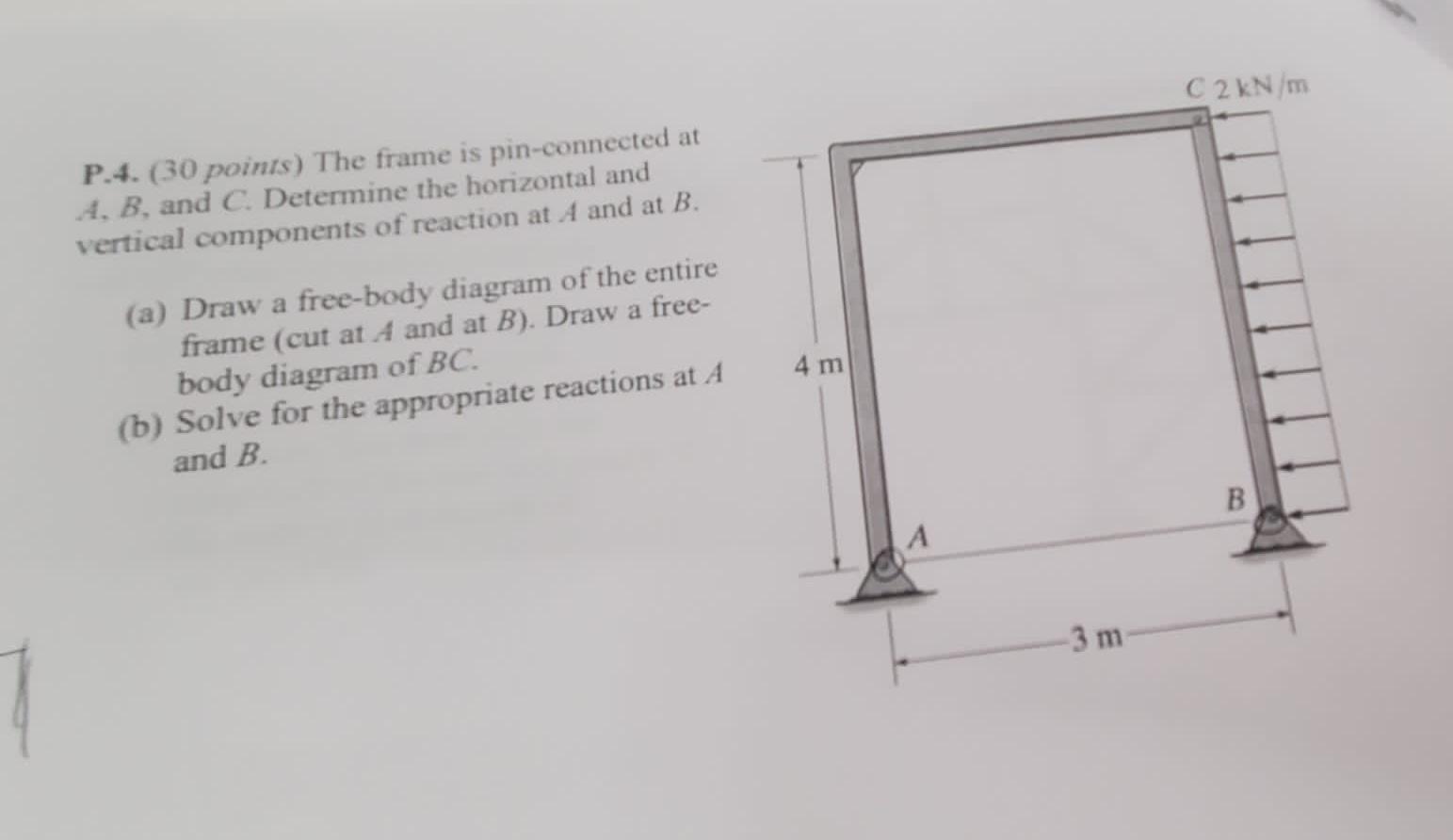

C 2 kN/m P.4. (30 points) The frame is pin-connected at 4. B, and C. Determine the horizontal and vertical components of reaction at A and at B. 4 m (a) Draw a free-body diagram of the entire frame (cut at 4 and at B). Draw a free- body diagram of BC. (b) Solve for the appropriate reactions at A and B. B A 3 m
