The Plane Frame Is Subjected To The Uniformly Distributed Load And Is Fixed At The Ends As Shown In The Figure 1000 L 1 (79.91 KiB) Viewed 26 times
The Plane Frame Is Subjected To The Uniformly Distributed Load And Is Fixed At The Ends As Shown In The Figure 1000 L 2 (30.67 KiB) Viewed 26 times
Assume E= 29,000 ksi, A= 5 in^2, and I= 5 in^4 for both elements
in the frame. Using FEM, set up the problem in order to find
all displacements.

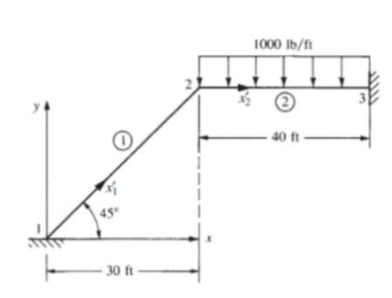

The plane frame is subjected to the uniformly distributed load and is fixed at the ends as shown in the figure.
1000 lb/ft 40 Ft 30 ft
