Use graphical method for the following questions, don't write functions for each segment. 1. Draw the shear and moment d

[answerhappygod]

Use Graphical Method For The Following Questions Don T Write Functions For Each Segment 1 Draw The Shear And Moment D 1 (40.97 KiB) Viewed 21 times

Read instructions to be sure its done correctly

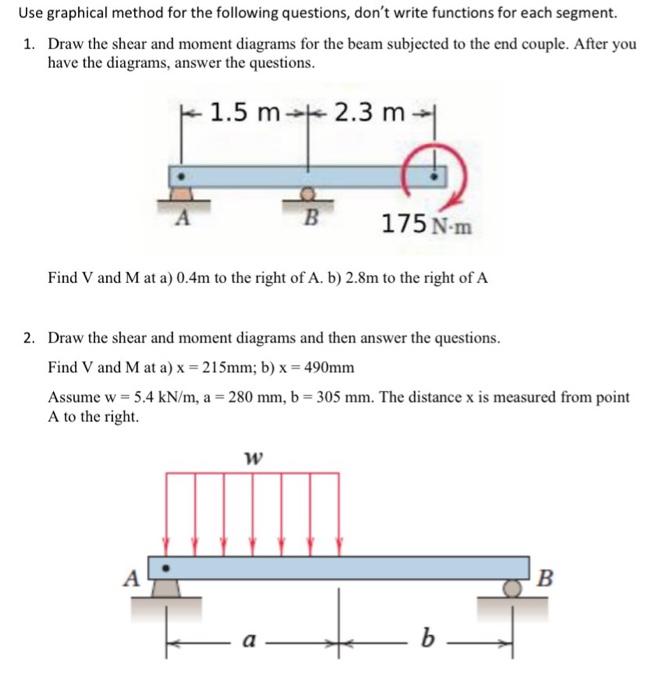

Use graphical method for the following questions, don't write functions for each segment. 1. Draw the shear and moment diagrams for the beam subjected to the end couple. After you have the diagrams, answer the questions. 1.5 m * 2.3 m2 B 175 Nm Find V and M at a) 0.4m to the right of A. b) 2.8m to the right of A 2. Draw the shear and moment diagrams and then answer the questions. Find V and M at a) x = 215mm; b)x= 490mm Assume w = 5.4 kN/m, a = 280 mm, b = 305 mm. The distance x is measured from point A to the right W A B a b
