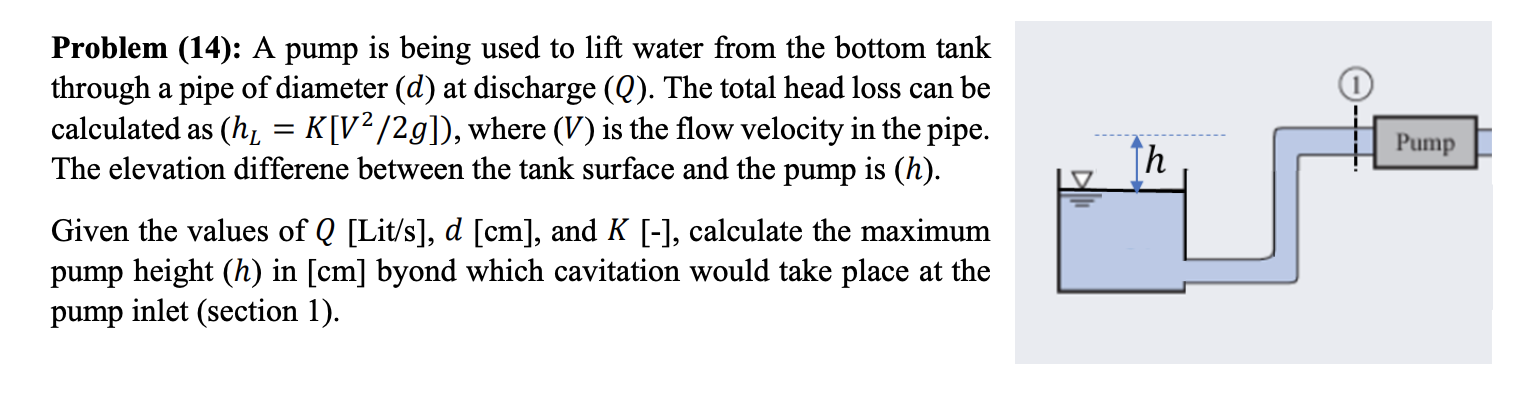

Problem (14): A pump is being used to lift water from the bottom tank through a pipe of diameter (d) at discharge (Q). T

[answerhappygod]

Problem 14 A Pump Is Being Used To Lift Water From The Bottom Tank Through A Pipe Of Diameter D At Discharge Q T 1 (100.83 KiB) Viewed 31 times

Problem (14): A pump is being used to lift water from the bottom tank through a pipe of diameter (d) at discharge (Q). The total head loss can be calculated as (hı = K[V2/2g]), where (V) is the flow velocity in the pipe. The elevation differene between the tank surface and the pump is (h). = th Pump Given the values of Q [Lit/s], d [cm], and K [-], calculate the maximum pump height (h) in [cm] byond which cavitation would take place at the pump inlet (section 1).
