L2, dz L, d, Problem (13): A pump is being used to lift water from the bottom tank to the top tank in a cast iron pipe a

[answerhappygod]

L2 Dz L D Problem 13 A Pump Is Being Used To Lift Water From The Bottom Tank To The Top Tank In A Cast Iron Pipe A 1 (144.82 KiB) Viewed 33 times

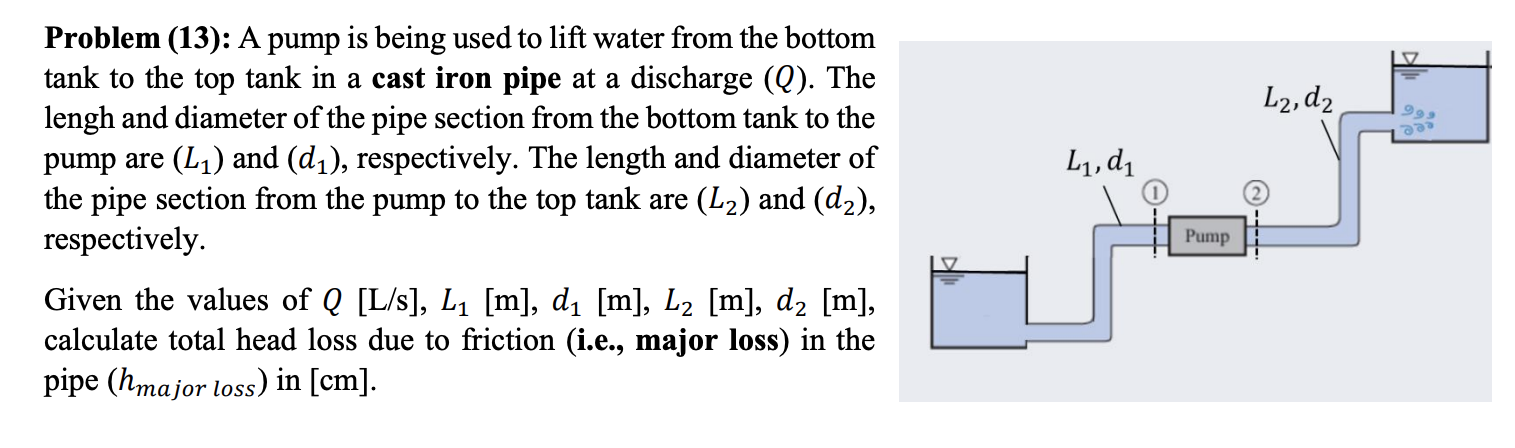

L2, dz L, d, Problem (13): A pump is being used to lift water from the bottom tank to the top tank in a cast iron pipe at a discharge (Q). The lengh and diameter of the pipe section from the bottom tank to the pump are (L1) and (dı), respectively. The length and diameter of the pipe section from the pump to the top tank are (L2) and (d2), respectively. Given the values of Q [L/s], L1 [m], di [m], L2 [m], d2 [m], calculate total head loss due to friction (i.e., major loss) in the pipe (hmajor loss) in [cm]. Pump
