V elbow 99. 22 elbow Problem (12): A pump is being used to lift water from the bottom tank to the top tank in a pipe of

[answerhappygod]

V Elbow 99 22 Elbow Problem 12 A Pump Is Being Used To Lift Water From The Bottom Tank To The Top Tank In A Pipe Of 1 (147.86 KiB) Viewed 23 times

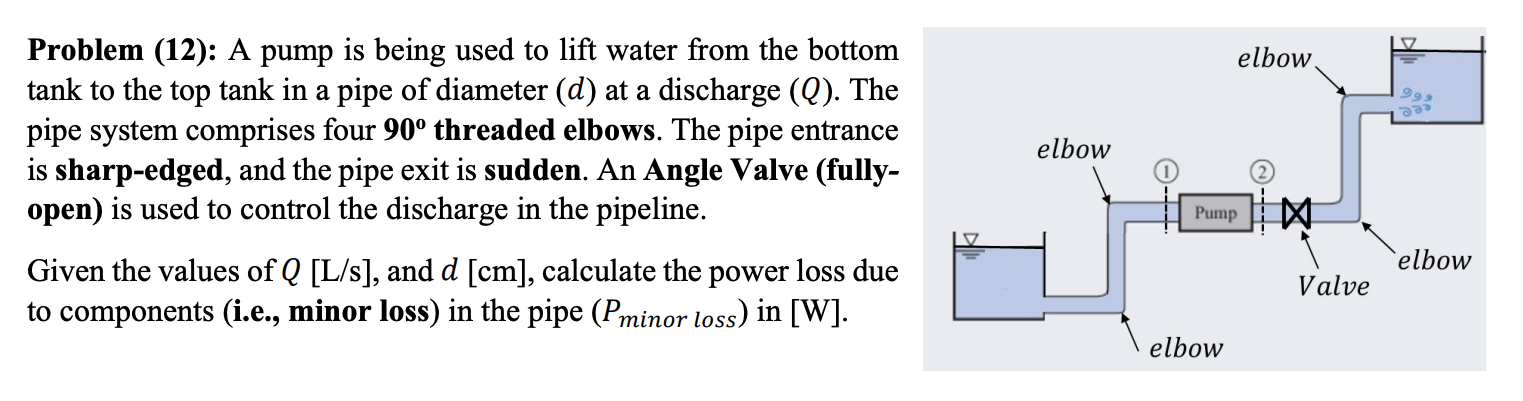

V elbow 99. 22 elbow Problem (12): A pump is being used to lift water from the bottom tank to the top tank in a pipe of diameter (d) at a discharge (Q). The pipe system comprises four 90° threaded elbows. The pipe entrance is sharp-edged, and the pipe exit is sudden. An Angle Valve (fully- open) is used to control the discharge in the pipeline. Given the values of Q [L/s], and d [cm], calculate the power loss due to components (i.e., minor loss) in the pipe (Pminor loss) in [W]. Pump elbow Valve elbow
