4.1 Obtain the steady-state output of the system given by the frequency response curve shown below when it is subjected

[answerhappygod]

4 1 Obtain The Steady State Output Of The System Given By The Frequency Response Curve Shown Below When It Is Subjected 1 (58.11 KiB) Viewed 28 times

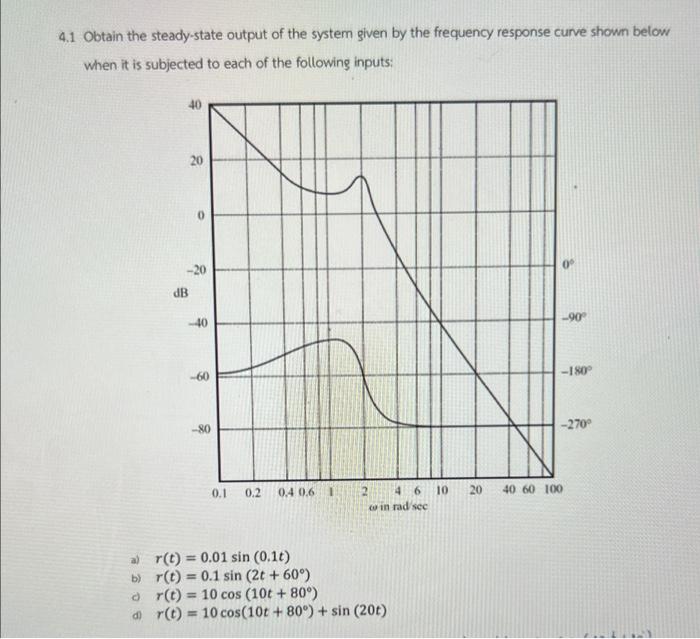

4.1 Obtain the steady-state output of the system given by the frequency response curve shown below when it is subjected to each of the following inputs: 40 20 0 dB -90 -40 -60 -180 -80 -270 0.1 0.2 0.4 0.61 20 40 60 100 2 4 6 10 w in rad sec a) r(t) = 0.01 sin (0.16) b) r(t) = 0.1 sin (2t + 60°) o r(t) = 10 cos (10t +80) di r(t) = 10 cos(10t+80) + sin (201)
