Design A Logic Circuit With The Following Characteristics 4 Bit Binary Input B3 B2 B1 Bo And An Output Z B3 Is 1 (24.47 KiB) Viewed 18 times
*list of all the components used in the circuit/system, detail
explanation / design procedure about the design/circuit, the
schematic or block diagram of the design/circuit (with clear
labels), complete results and discussion to prove the working
principle

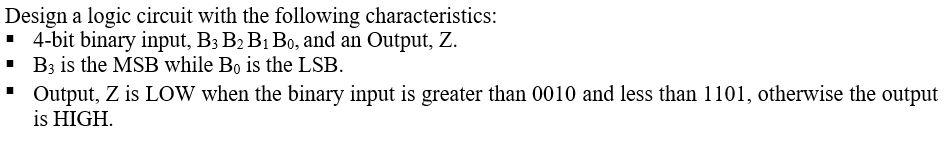

Design a logic circuit with the following characteristics: • 4-bit binary input, B3 B2 B1 Bo, and an Output, Z. · B3 is the MSB while Bo is the LSB. Output, Z is LOW when the binary input is greater than 0010 and less than 1101, otherwise the output is HIGH 1
