Question 3 T H G F 50- E RA A drawbridge is supported in the position shown by the pin at A and tension T in a cable att

[answerhappygod]

Question 3 T H G F 50 E Ra A Drawbridge Is Supported In The Position Shown By The Pin At A And Tension T In A Cable Att 1 (17.51 KiB) Viewed 25 times

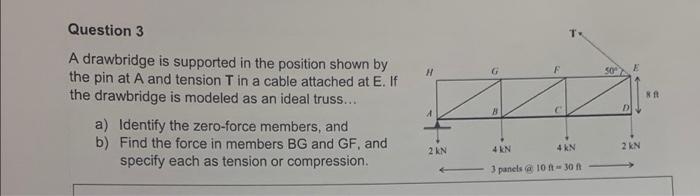

Question 3 T H G F 50- E RA A drawbridge is supported in the position shown by the pin at A and tension T in a cable attached at E. If the drawbridge is modeled as an ideal truss... a) Identify the zero-force members, and b) Find the force in members BG and GF, and specify each as tension or compression. D 2 KN 4 kN 2 KN 4 KN 3 panels 10 - 30 ft
