The following gear train is being used to reduce the speed coming out of a motor at the input shaft to move a conveyor b

[answerhappygod]

The Following Gear Train Is Being Used To Reduce The Speed Coming Out Of A Motor At The Input Shaft To Move A Conveyor B 1 (146.92 KiB) Viewed 26 times

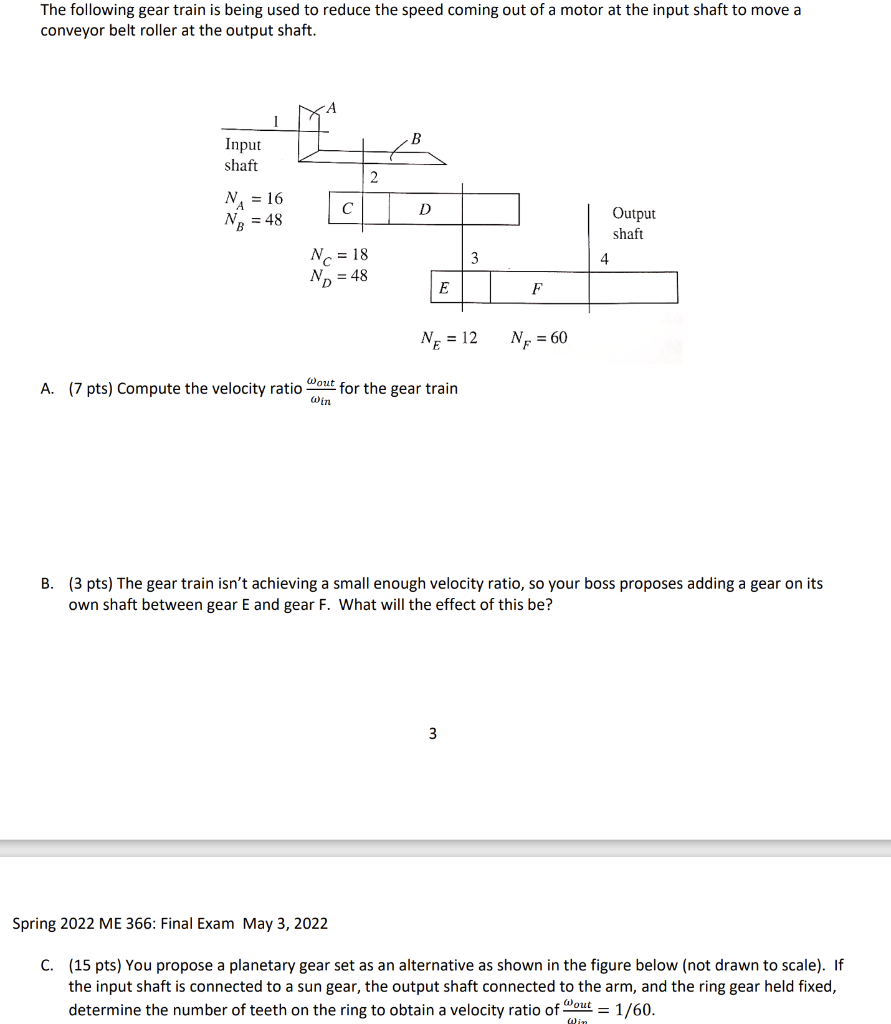

The following gear train is being used to reduce the speed coming out of a motor at the input shaft to move a conveyor belt roller at the output shaft. B Input shaft 2 N = 16 No = 48 с D Output shaft 3 4 Nc = 18 No = 48 E F Ne = 12 No = 60 A. (7 pts) Compute the velocity ratio Wout for the gear train Win B. (3 pts) The gear train isn't achieving a small enough velocity ratio, so your boss proposes adding a gear on its own shaft between gear E and gear F. What will the effect of this be? 3 Spring 2022 ME 366: Final Exam May 3, 2022 C. (15 pts) You propose a planetary gear set as an alternative as shown in the figure below (not drawn to scale). If the input shaft is connected to a sun gear, the output shaft connected to the arm, and the ring gear held fixed, determine the number of teeth on the ring to obtain a velocity ratio of Wout = 1/60. Win
