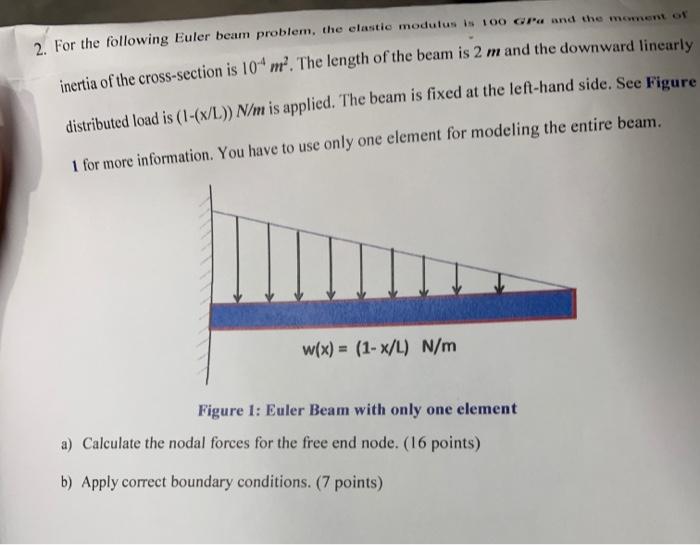

2. For the following Euler beam problem, the elastic modulus is 100 gra and the moment or inertia of the cross-section is 10“ mº. The length of the beam is 2 m and the downward linearly distributed load is (1-(x/L)) N/m is applied. The beam is fixed at the left-hand side. See Figure 1 for more information. You have to use only one element for modeling the entire beam. w(x) = (1-X/L) N/m Figure 1: Euler Beam with only one element a) Calculate the nodal forces for the free end node. (16 points) b) Apply correct boundary conditions. (7 points)
