c) Calculate the tip displacement and rotation of the tip. (9 points) 3. For non-uniform beam element as shown in Figure

Post by answerhappygod »

C Calculate The Tip Displacement And Rotation Of The Tip 9 Points 3 For Non Uniform Beam Element As Shown In Figure 1
C Calculate The Tip Displacement And Rotation Of The Tip 9 Points 3 For Non Uniform Beam Element As Shown In Figure 1 (23.91 KiB) Viewed 32 times

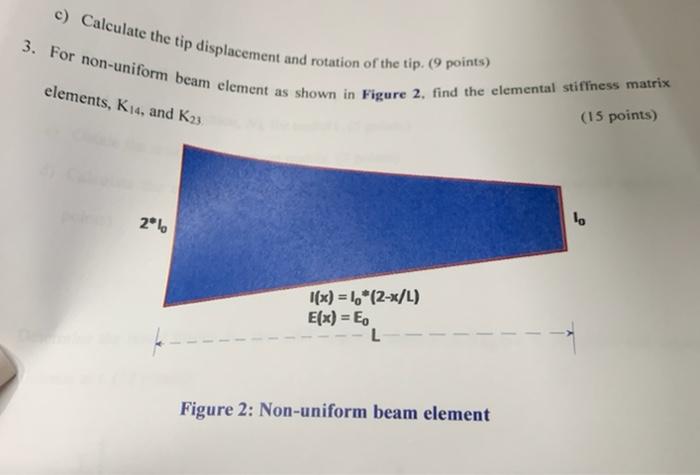

c) Calculate the tip displacement and rotation of the tip. (9 points) 3. For non-uniform beam element as shown in Figure 2. find the elemental stiffness matrix elements, K14, and K23 (15 points) 26 10 1(x) = 1, (2-x/L) E(x) = E. L Figure 2: Non-uniform beam element
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
