Using the following gears assembly where all the gears are spur gears with a pitch of 40: 64 03 02 01 Input Output G6 GS

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Using the following gears assembly where all the gears are spur gears with a pitch of 40: 64 03 02 01 Input Output G6 GS

Post by answerhappygod »

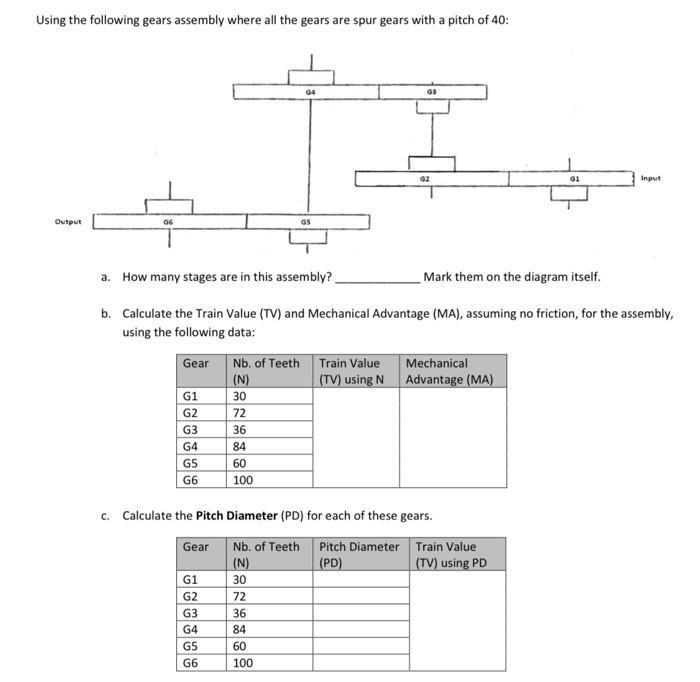

Using The Following Gears Assembly Where All The Gears Are Spur Gears With A Pitch Of 40 64 03 02 01 Input Output G6 Gs 1
Using The Following Gears Assembly Where All The Gears Are Spur Gears With A Pitch Of 40 64 03 02 01 Input Output G6 Gs 1 (39.6 KiB) Viewed 23 times
Using the following gears assembly where all the gears are spur gears with a pitch of 40: 64 03 02 01 Input Output G6 GS a. How many stages are in this assembly? Mark them on the diagram itself. b. Calculate the Train Value (TV) and Mechanical Advantage (MA), assuming no friction, for the assembly, using the following data: Gear Nb. of Teeth Train Value Mechanical (N) (TV) using N Advantage (MA) G1 G2 G3 G4 GS 30 72 36 84 60 100 G6 c. Calculate the Pitch Diameter (PD) for each of these gears. Gear G1 G2 G3 G4 G5 G6 Nb. of Teeth Pitch Diameter Train Value (N) (PD) (TV) using PD 30 72 36 84 60 100
