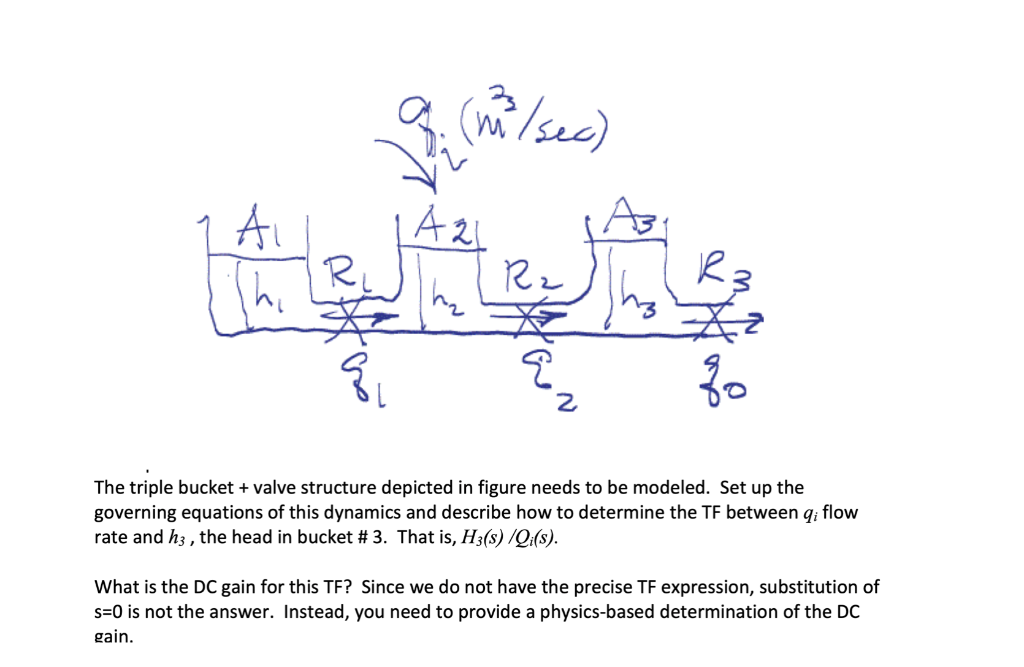

(m/sec) 1 Ai A Az Rz Rz با بیان 2 The triple bucket + valve structure depicted in figure needs to be modeled. Set up the

[answerhappygod]

1 (147.12 KiB) Viewed 19 times

(m/sec) 1 Ai A Az Rz Rz با بیان 2 The triple bucket + valve structure depicted in figure needs to be modeled. Set up the governing equations of this dynamics and describe how to determine the TF between qi flow rate and hz , the head in bucket #3. That is, H3(s)/Q:(s). What is the DC gain for this TF? Since we do not have the precise TF expression, substitution of s=0 is not the answer. Instead, you need to provide a physics-based determination of the DC gain.
