(1-2) Draw the shear and bending moment diagram for the beams shown in the following figures and find the values of maxi

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

(1-2) Draw the shear and bending moment diagram for the beams shown in the following figures and find the values of maxi

Post by answerhappygod »

1 2 Draw The Shear And Bending Moment Diagram For The Beams Shown In The Following Figures And Find The Values Of Maxi 1
1 2 Draw The Shear And Bending Moment Diagram For The Beams Shown In The Following Figures And Find The Values Of Maxi 1 (50.98 KiB) Viewed 16 times

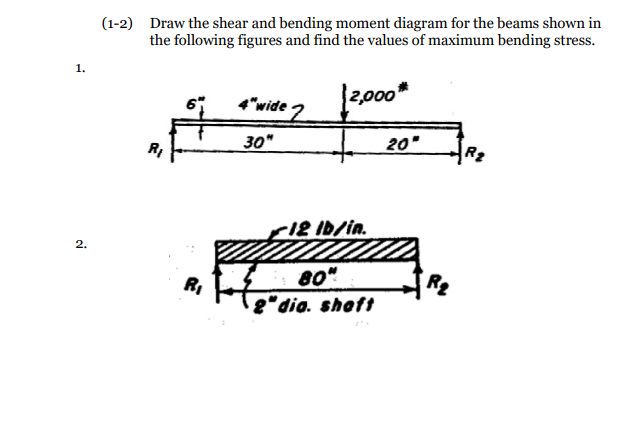

(1-2) Draw the shear and bending moment diagram for the beams shown in the following figures and find the values of maximum bending stress. 1. 2,000 * 4"wide 2 30" 20" R2 12 ID/in. 2. 2. R Heren 80" & dia. shaft R2
