The simply supported beam shown consists of a W410 x 60 structural steel wide-flange shape [E = 200 GPa; 1 = 216 x 106 m

Post by answerhappygod »

The Simply Supported Beam Shown Consists Of A W410 X 60 Structural Steel Wide Flange Shape E 200 Gpa 1 216 X 106 M 1
The Simply Supported Beam Shown Consists Of A W410 X 60 Structural Steel Wide Flange Shape E 200 Gpa 1 216 X 106 M 1 (29.56 KiB) Viewed 52 times

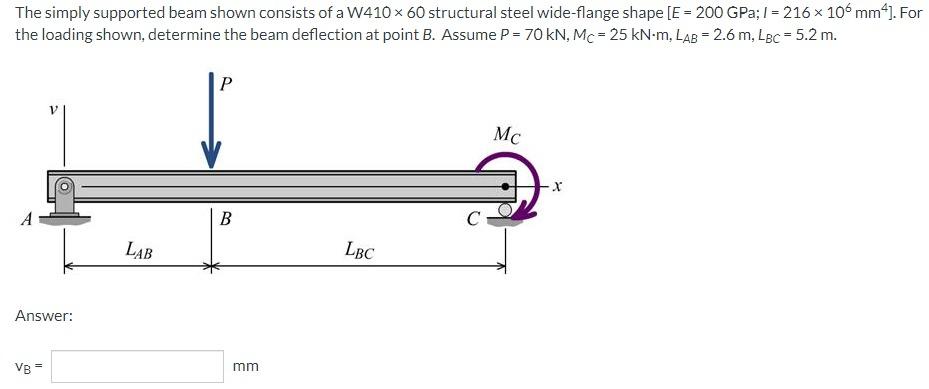

The simply supported beam shown consists of a W410 x 60 structural steel wide-flange shape [E = 200 GPa; 1 = 216 x 106 mm“). For the loading shown, determine the beam deflection at point B. Assume P = 70 kN, Mc = 25 kN-m, Las = 2.6 m, Lbc = 5.2 m. P MC X А B LAB LBC Answer: VB- mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
