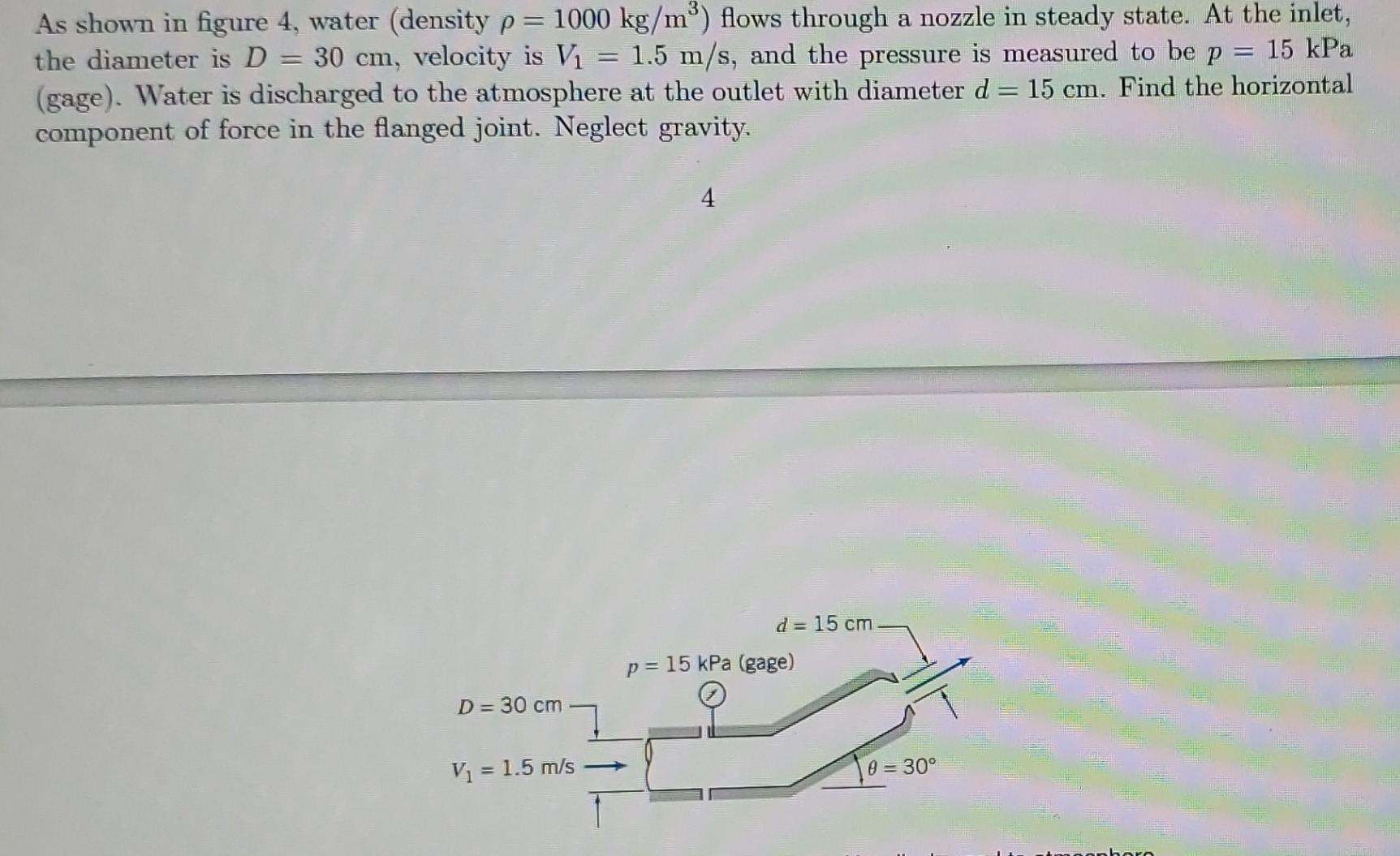

As shown in figure 4, water (density p= 1000 kg/mº) flows through a nozzle in steady state. At the inlet, the diameter is D = 30 cm, velocity is Vi = 1.5 m/s, and the pressure is measured to be p = 15 kPa (gage). Water is discharged to the atmosphere at the outlet with diameter d= 15 cm. Find the horizontal component of force in the flanged joint. Neglect gravity. 4 d = 15 cm p = 15 kPa (gage) D= 30 cm Vi = 1.5 m/s 0 = 30° bar
