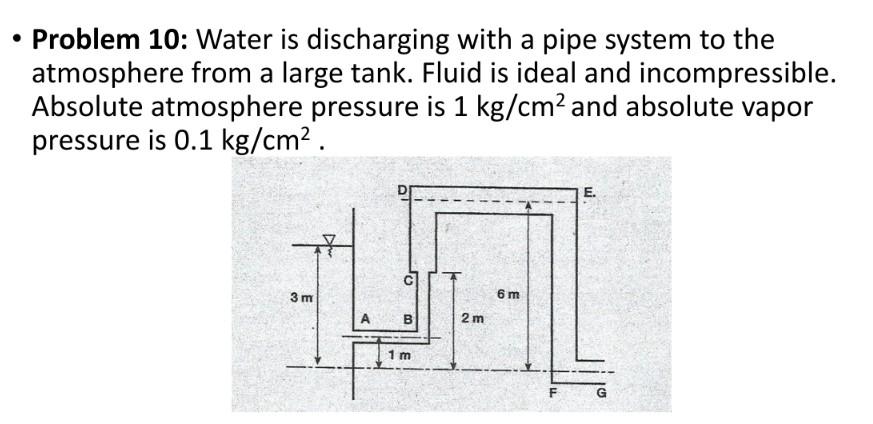

• Problem 10: Water is discharging with a pipe system to the atmosphere from a large tank. Fluid is ideal and incompressible. Absolute atmosphere pressure is 1 kg/cm² and absolute vapor pressure is 0.1 kg/cm2. E. JO 3 m 6 m 00 B 2 m 1 m F G
a. Find the discharge, Writing Bernoulli equation between water surface and DE;
