For the beam and loading shown below, determine the beam deflection at point H. Assume that El = 6.5 x 104 kN-mis consta

Post by answerhappygod »

For The Beam And Loading Shown Below Determine The Beam Deflection At Point H Assume That El 6 5 X 104 Kn Mis Consta 1
For The Beam And Loading Shown Below Determine The Beam Deflection At Point H Assume That El 6 5 X 104 Kn Mis Consta 1 (45.86 KiB) Viewed 28 times

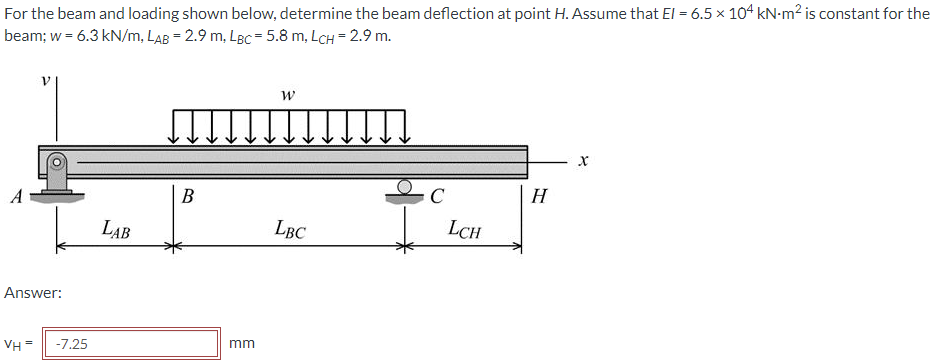

For the beam and loading shown below, determine the beam deflection at point H. Assume that El = 6.5 x 104 kN-mis constant for the beam; w=6.3 kN/m, LAB= 2.9 m, Loc=5.8 m, LcH = 2.9 m. W NI X B H с LCH LAB LBC Answer: VH = -7.25 mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
