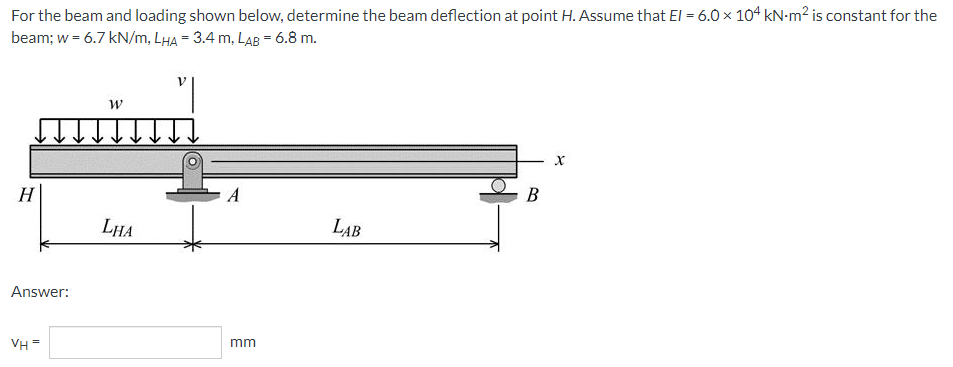

For the beam and loading shown below, determine the beam
deflection at point H. Assume that EI
= 6.0 × 104 kN·m2 is
constant for the
beam; w = 6.7 kN/m, LHA = 3.4 m, LAB = 6.8 m.
For The Beam And Loading Shown Below Determine The Beam Deflection At Point H Assume That Ei 6 0 104 Kn M2 Is Cons 1 (37.28 KiB) Viewed 32 times
For the beam and loading shown below, determine the beam deflection at point H. Assume that El = 6.0 x 104 kN-m2 is constant for the beam; w = 6.7 kN/m, LHA = 3.4 m, LAB = 6.8 m. V W X H A B LHA LAB Answer: VH= mm
