Consider the composite wall in Figure QA5. It includes hardwood siding ("a"), hardwood studs that are spaced apart from

Post by answerhappygod »

Consider The Composite Wall In Figure Qa5 It Includes Hardwood Siding A Hardwood Studs That Are Spaced Apart From 1
Consider The Composite Wall In Figure Qa5 It Includes Hardwood Siding A Hardwood Studs That Are Spaced Apart From 1 (144.61 KiB) Viewed 35 times

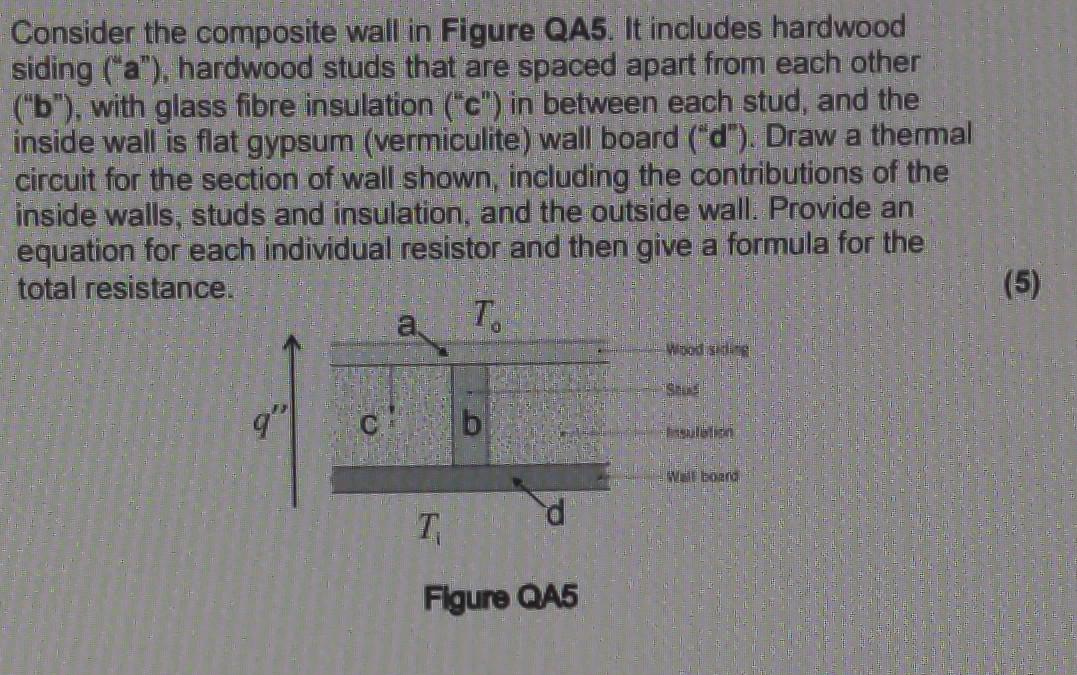

Consider the composite wall in Figure QA5. It includes hardwood siding ("a"), hardwood studs that are spaced apart from each other ("b"), with glass fibre insulation ("c") in between each stud, and the inside wall is flat gypsum (vermiculite) wall board ("d"). Draw a thermal circuit for the section of wall shown, including the contributions of the inside walls, studs and insulation, and the outside wall. Provide an equation for each individual resistor and then give a formula for the total resistance. T. (5) a Woods q" b board T Figure QA5
