Example 2 a Consider the pipe network shown below. Assuming a flow rate of 0.3 m3/s (anti- clockwise) in pipe AF, and a

[answerhappygod]

Example 2 A Consider The Pipe Network Shown Below Assuming A Flow Rate Of 0 3 M3 S Anti Clockwise In Pipe Af And A 1 (112.19 KiB) Viewed 26 times

Please help. And can you please show me which formulas you use and some steps instead of only final answers please and thanks in advance.

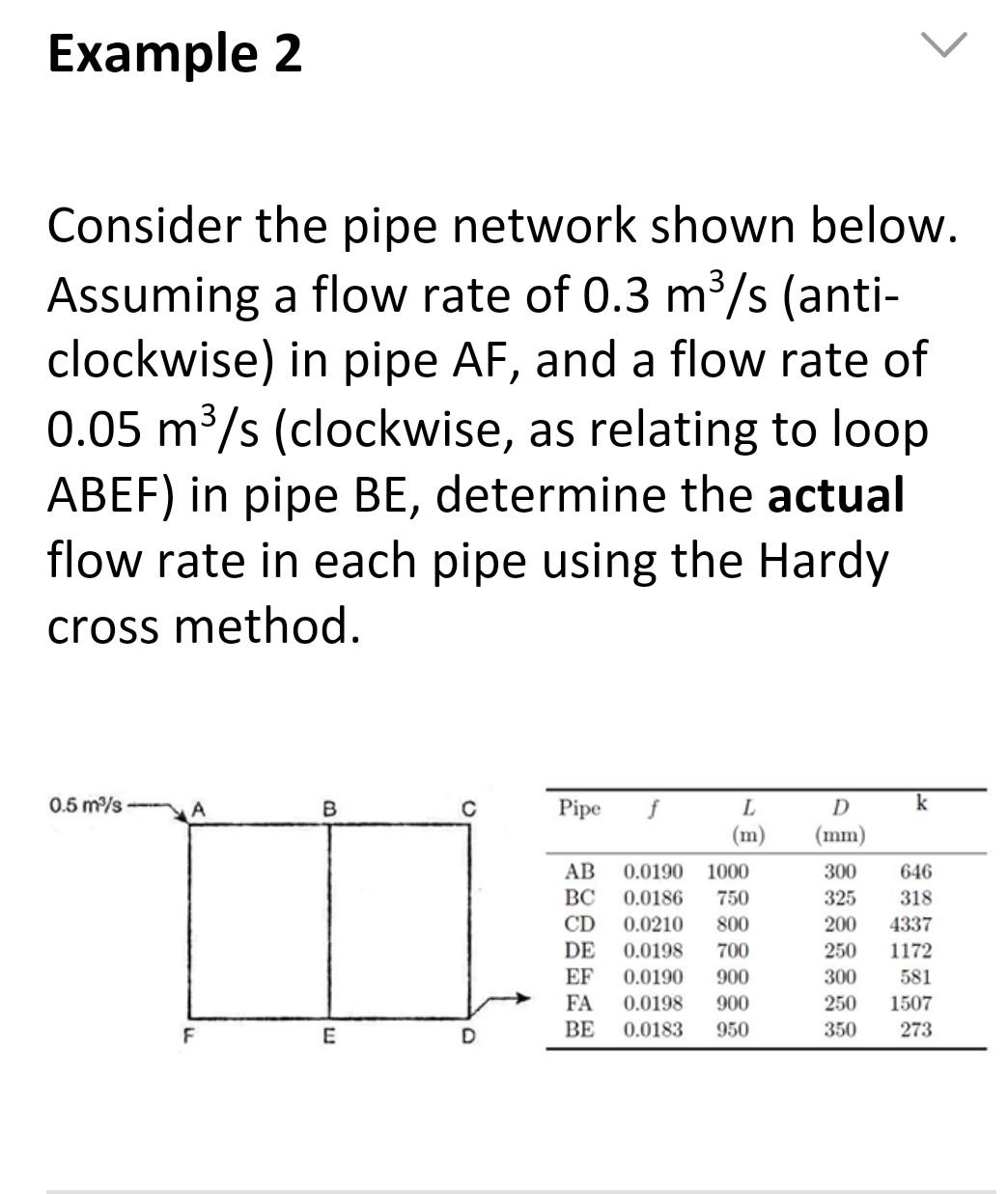

Example 2 a Consider the pipe network shown below. Assuming a flow rate of 0.3 m3/s (anti- clockwise) in pipe AF, and a flow rate of 0.05 m3/s (clockwise, as relating to loop ABEF) in pipe BE, determine the actual flow rate in each pipe using the Hardy cross method. 0.5 m/s A B с Pipe f k L (m) AB BC CD DE EF FA BE 0.0190 1000 0.0186 750 0.0210 800 0.0198 700 0.0190 900 0.0198 900 0.0183 950 D (mm) 300 325 200 250 300 250 350 646 318 4337 1172 581 1507 273 F E
