A bar is supported between the walls at X and Y. The bar has a
cross sectional area of 4700 mm2. A load FZ= 12 kN is applied at
point Z. Calculate the reactions forces at the walls at X and Y.
Assume the Modulus of Elasticity is 190 GPa.

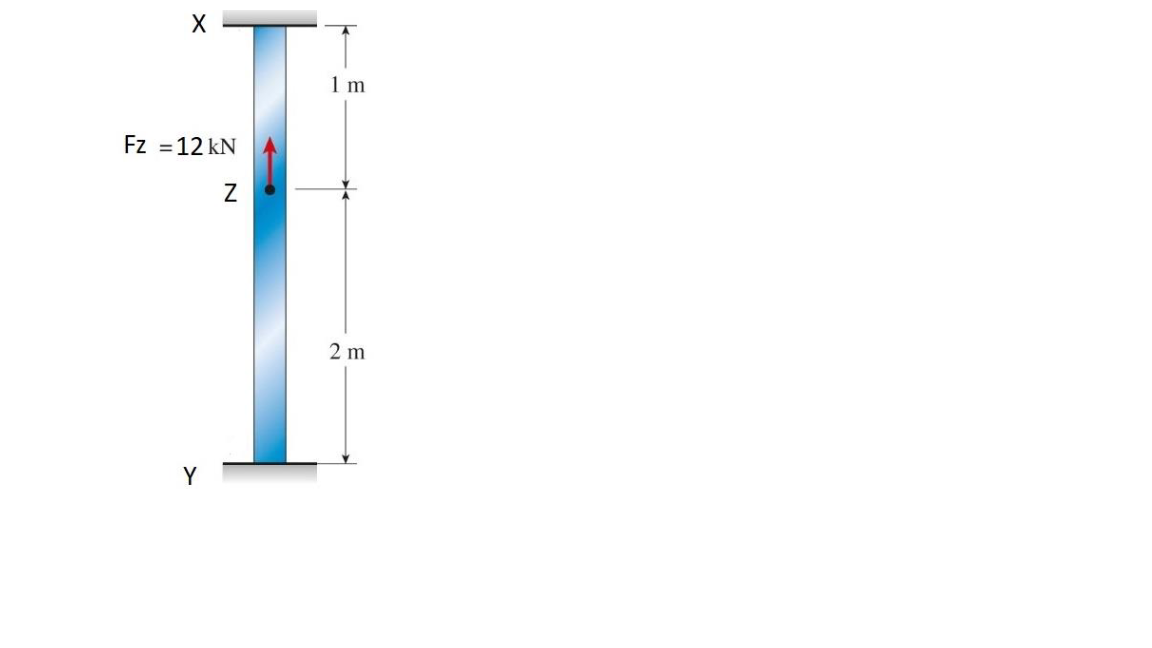

A Bar Is Supported Between The Walls At X And Y The Bar Has A Cross Sectional Area Of 4700 Mm2 A Load Fz 12 Kn Is App 1 (68.7 KiB) Viewed 23 times
X 1 m FZ = 12 kN z 2 m Y
