WE3. DEFLECTION NORMAL TO LINE OF ACTION OF APPLIED LOAD A steel bar is bent into the shape shown in Fig. EX3. The lower

Post by answerhappygod »

We3 Deflection Normal To Line Of Action Of Applied Load A Steel Bar Is Bent Into The Shape Shown In Fig Ex3 The Lower 1
We3 Deflection Normal To Line Of Action Of Applied Load A Steel Bar Is Bent Into The Shape Shown In Fig Ex3 The Lower 1 (28.58 KiB) Viewed 21 times
there is no more information. do not waste my question

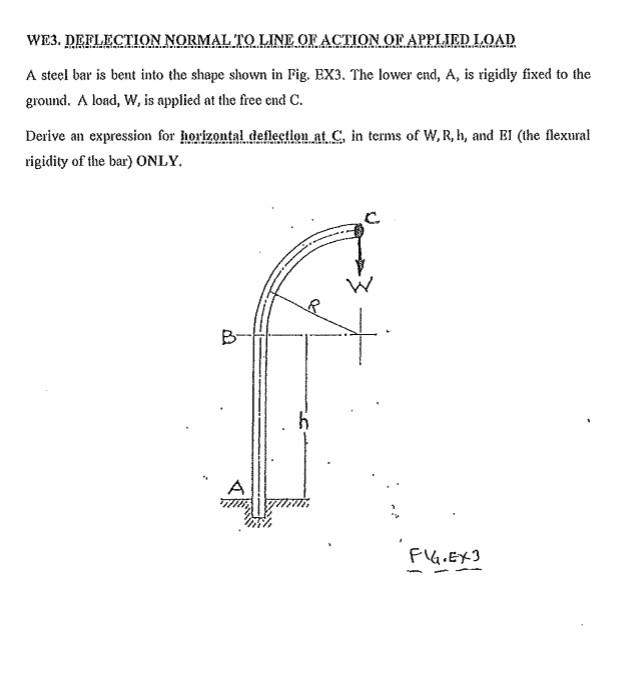

WE3. DEFLECTION NORMAL TO LINE OF ACTION OF APPLIED LOAD A steel bar is bent into the shape shown in Fig. EX3. The lower end, A, is rigidly fixed to the ground. A load, W, is applied at the free end C. Derive an expression for horizontal deflection at C, in terms of W, R, h, and El (the flexural rigidity of the bar) ONLY. B h A FW.EX 3
