6. 1) For the semicircular area below, if its radius r= 1.3 in., determine its centroidal moment of inertia in in.4, Ix'

[answerhappygod]

6 1 For The Semicircular Area Below If Its Radius R 1 3 In Determine Its Centroidal Moment Of Inertia In In 4 Ix 1 (40.21 KiB) Viewed 18 times

6 1 For The Semicircular Area Below If Its Radius R 1 3 In Determine Its Centroidal Moment Of Inertia In In 4 Ix 2 (31.4 KiB) Viewed 18 times

6 1 For The Semicircular Area Below If Its Radius R 1 3 In Determine Its Centroidal Moment Of Inertia In In 4 Ix 3 (18 KiB) Viewed 18 times

6 1 For The Semicircular Area Below If Its Radius R 1 3 In Determine Its Centroidal Moment Of Inertia In In 4 Ix 4 (34.83 KiB) Viewed 18 times

6 1 For The Semicircular Area Below If Its Radius R 1 3 In Determine Its Centroidal Moment Of Inertia In In 4 Ix 5 (18.07 KiB) Viewed 18 times

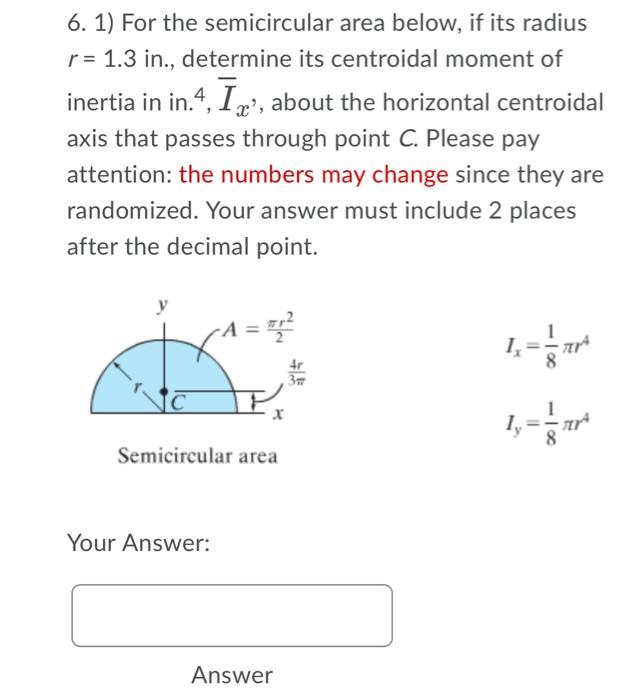

6. 1) For the semicircular area below, if its radius r= 1.3 in., determine its centroidal moment of inertia in in.4, Ix', about the horizontal centroidal axis that passes through point C. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. A = 1, oc 11 8 Semicircular area Your Answer: Answer

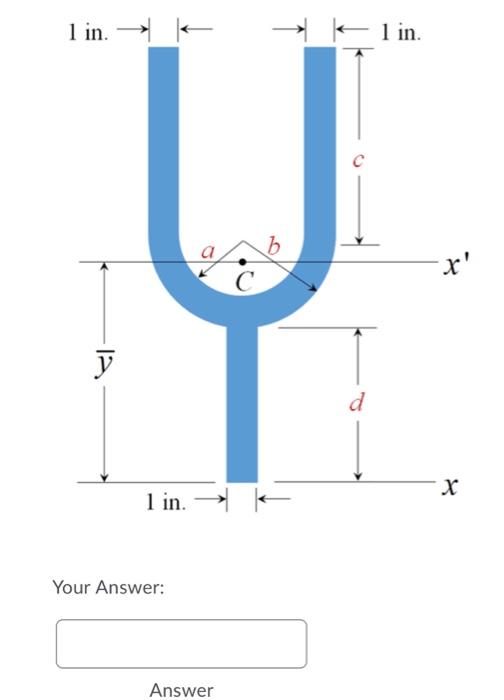

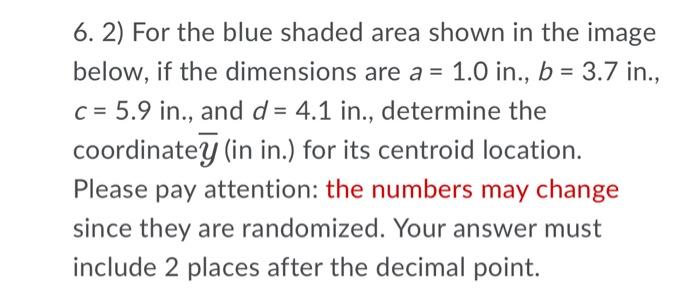

6. 2) For the blue shaded area shown in the image below, if the dimensions are a = 1.0 in., b = 3.7 in., c = 5.9 in., and d = 4.1 in., determine the coordinatey (in in.) for its centroid location. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point.
1 in. – k I lin. с U x' V d X 1 in. Your Answer: Answer

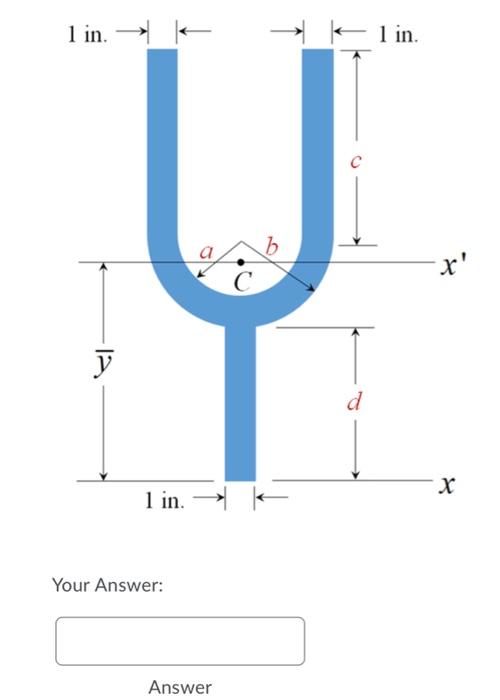

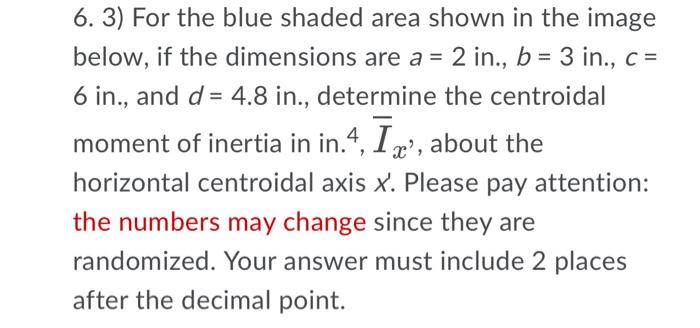

6.3) For the blue shaded area shown in the image below, if the dimensions are a = 2 in., b = 3 in., C= 6 in., and d = 4.8 in., determine the centroidal moment of inertia in in.4, 7x3, about the X' horizontal centroidal axis x. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point.
1 in. I . k . 1 in. с x' Ý d х 1 in. - Your Answer: Answer
