WE1. DEFLECTION IN DIRECTION OF LINE OF ACTION OF APPLIED LOAD A beam of uniform flexural rigidity (EI) and total effect

Post by answerhappygod »

We1 Deflection In Direction Of Line Of Action Of Applied Load A Beam Of Uniform Flexural Rigidity Ei And Total Effect 1
We1 Deflection In Direction Of Line Of Action Of Applied Load A Beam Of Uniform Flexural Rigidity Ei And Total Effect 1 (32.37 KiB) Viewed 28 times

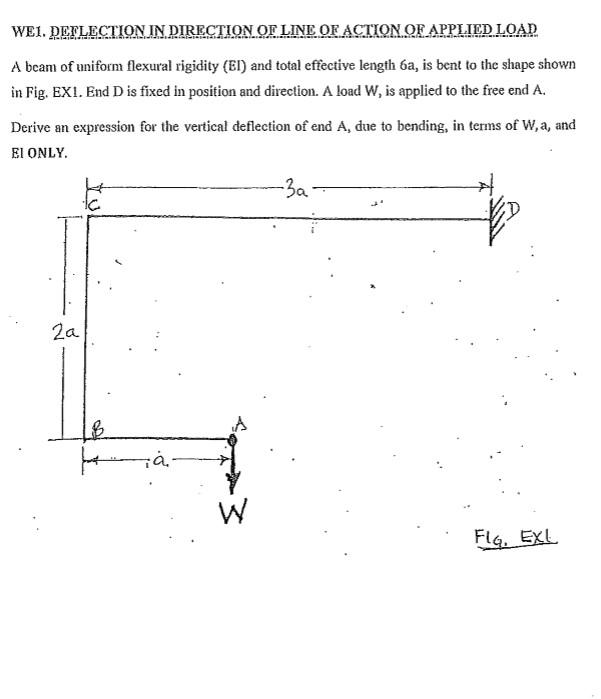

WE1. DEFLECTION IN DIRECTION OF LINE OF ACTION OF APPLIED LOAD A beam of uniform flexural rigidity (EI) and total effective length 6a, is bent to the shape shown in Fig. EX1. End D is fixed in position and direction. A load W, is applied to the free end A. Derive an expression for the vertical deflection of end A, due to bending, in terms of w,a, and EI ONLY -3a 2a B ia. W FIG. EXL
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
