Machine Design Lecture 5: Fasteners, Power Screws and Helical Coil Springs Problem. The pressure vessel shown is to be c

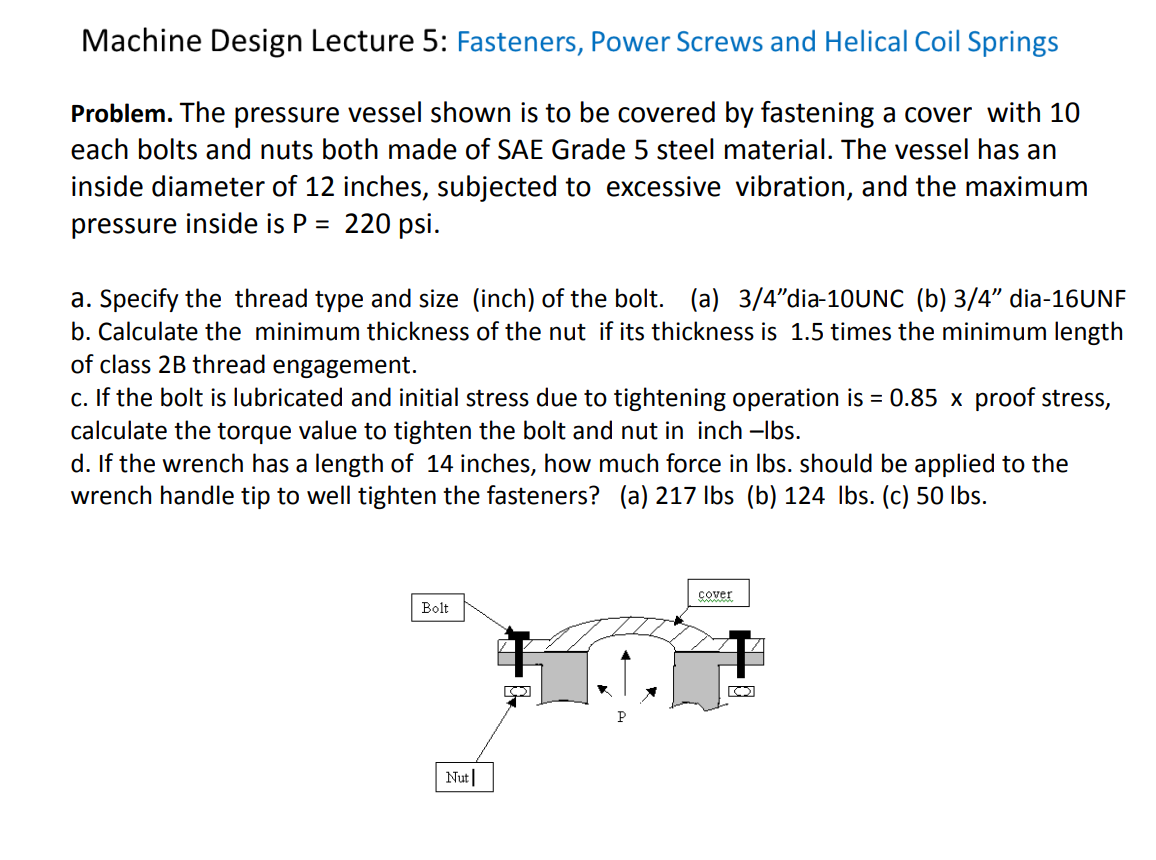

Machine Design Lecture 5: Fasteners, Power Screws and Helical Coil Springs Problem. The pressure vessel shown is to be covered by fastening a cover with 10 each bolts and nuts both made of SAE Grade 5 steel material. The vessel has an inside diameter of 12 inches, subjected to excessive vibration, and the maximum pressure inside is P = 220 psi. a. Specify the thread type and size (inch) of the bolt. (a) 3/4”dia-10UNC (b) 3/4” dia-16UNF b. Calculate the minimum thickness of the nut if its thickness is 1.5 times the minimum length of class 2B thread engagement. c. If the bolt is lubricated and initial stress due to tightening operation is = 0.85 x proof stress, calculate the torque value to tighten the bolt and nut in inch -Ibs. d. If the wr ch has a length of 14 inches, how much force in lbs. should be applied to the wrench handle tip to well tighten the fasteners? (a) 217 lbs (b) 124 lbs. (c) 50 lbs. cover Bolt O Nut|
