Figure Q3a shows a cantilever beam which is acted on by three forces as shown. The beam is in static equilibrium. 1. dra

Post by answerhappygod »

Figure Q3a Shows A Cantilever Beam Which Is Acted On By Three Forces As Shown The Beam Is In Static Equilibrium 1 Dra 1
Figure Q3a Shows A Cantilever Beam Which Is Acted On By Three Forces As Shown The Beam Is In Static Equilibrium 1 Dra 1 (359.23 KiB) Viewed 23 times

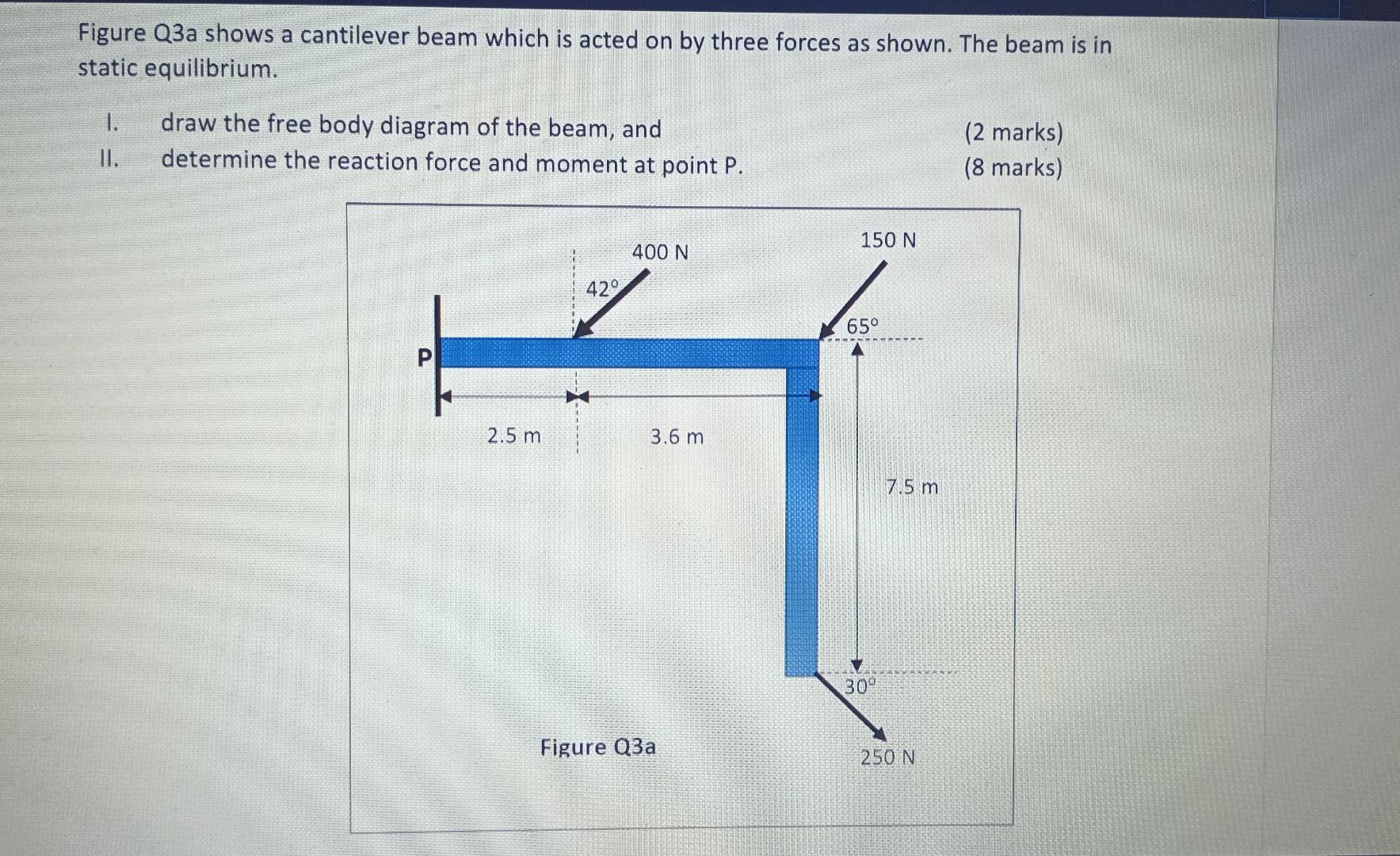

Figure Q3a shows a cantilever beam which is acted on by three forces as shown. The beam is in static equilibrium. 1. draw the free body diagram of the beam, and determine the reaction force and moment at point P. II. (2 marks) (8 marks) 150 N 400 N 429 650 P 2.5 m 3.6 m 7.5 m 30° Figure Q3a 250 N
